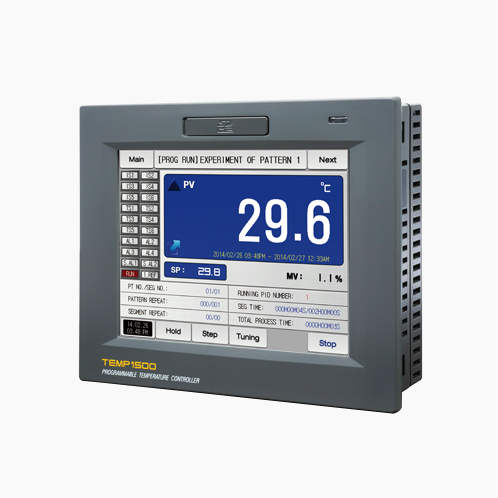

TEMP1500

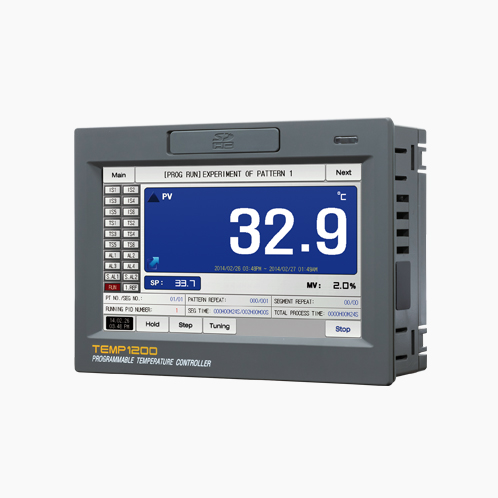

TEMP1200

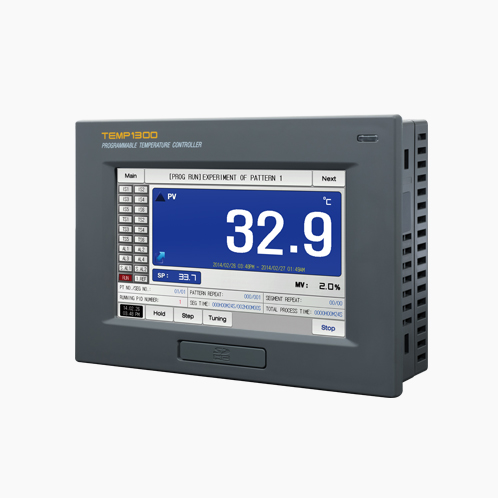

TEMP1300

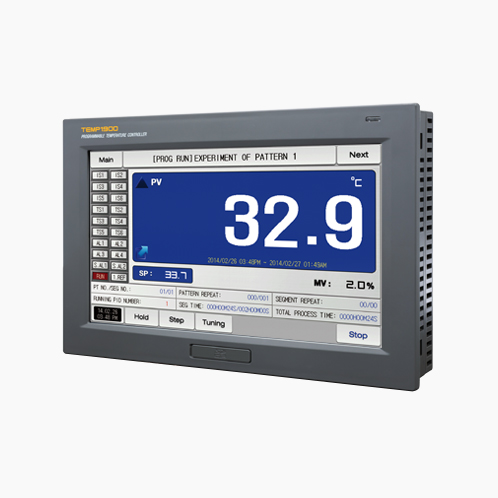

TEMP1900

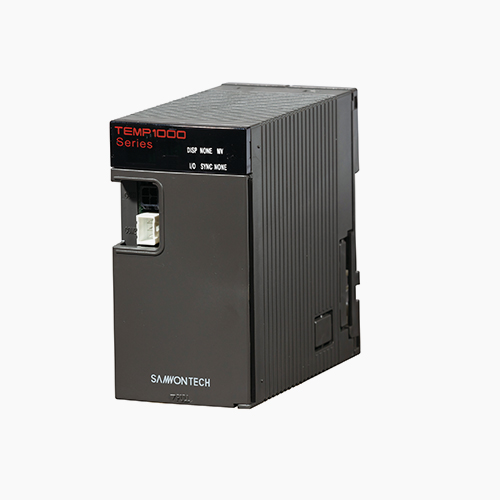

CONTROL

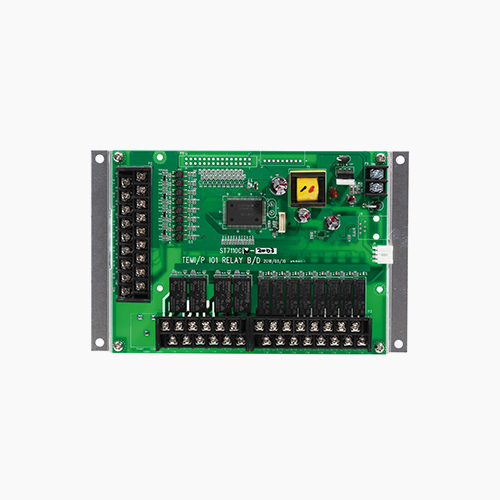

I/O1 Borad

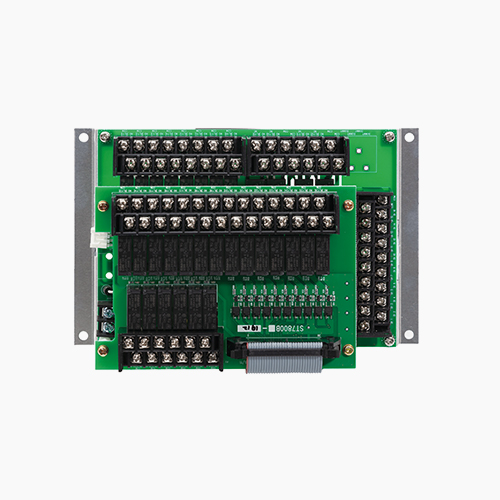

I/O2 Borad

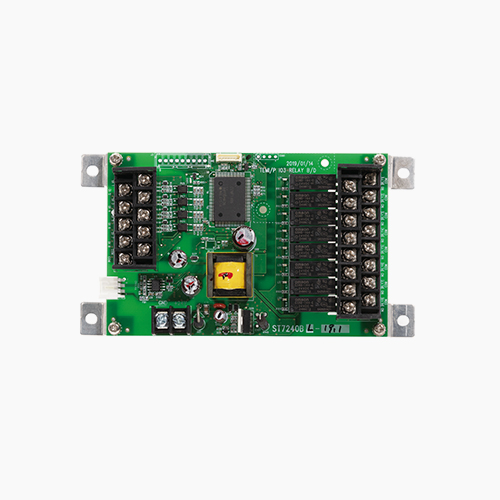

I/O3 Borad
Economic touch type programmable Temperature controller
TEMP1000 SERIES
It is temperature and humidity programmable controller, It is an economical product that supports recording function and has normal control and heating/cooling control functions by supporting high definition TFT-LCD touch screen.
-
Various patterns
Fix and program control are possible and when program control, possible to set 80 petterns/1200 segments
-
High accuracy
Precision control with 18bit A/D convertor
±0.1% of full scale ±1 digit
-
Control PID of a variety
Temperature control PID group(5 Zone PID + 1 Deviation PID or 6 Seg PID)Zone, Deviation PID etc. Various PID offer
-
Various unit displays
Available 12 kinds of various unit to display under DCV sensor (˚C, ˚F, EDIT, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf)
-
Heating·cooling control
Heat and cooling control by equipments (Option)
-
Touch screen interface
Easy access to setup and operate with touch screen
-
Digital recorder function
Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required
-
SD memory card support
The pattern and parameter can be up/download via SD memory card
-
Multi-language system
Supporting of various languages of korean, english, Chinese and Japanese
-
Powerful communication
Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option
-
Free PC software
Free PC multi-monitoring software for communication and SD viewer for data management of SD data
-
Operation time management
Display of the operation starting time, estimated termination time and operation time up to now
Supporting SD memory card
-
Editable Error Scree
Self-designed picture can be used
-
Data recording with SD card
Data acquisition of process value.
Up/Download parameter and pattern data.
Logical signal set
The combination of the various signals is possible and logical output is possible(AND, OR, A/B contact, Timer operation possible)
An example of the Logical signal behavior
Separated hardware
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability
| Group | Items | TEMP1200 | TEMP1300 | TEMP1500 | TEMP1900 |
|---|---|---|---|---|---|
| Screen | Display | 4.3″ Wide TFT-LCD |
5.0″ Wide TFT-LCD |
5.6″ TFT-LCD |
9.0″ Wide TFT-LCD |
| Resolution | 800(W) × 480(H) |
800(W) × 480(H) |
640(W) × 480(H) |
800(W) × 480(H) |
|
| Language | Korean, English, Japanese, Chinese |
||||
| Mount type | PANEL mount, VESA mount(MIS-D 75) |
- | |||
| Analog input | Number of point | 1point(Universal input) |
|||
| Type | TC |
K, J, E, T, R, B, S, L, N, U, W, PlatinelⅡ, C |
|||
RTD |
Pt100(IEC), Jpt100(JIS), 1/100 Displayable |
||||
DCV |
0.4~2V, 1~5V, 0~10V, -10~20mV, 1~100mV (4~20mA, 0~20mA, Load resistor 250Ω, 500Ω attach) Scale : -1999 ~ 30000 |
||||
| Sampling time | 250ms |
||||
| Input accuracy | ±0.1% of full scale ±1 digit(A/D 18bits) |
||||
| Bias | 8points of piece and full bias |
||||
| Display unit | TC/RTD |
˚C, ˚F |
|||
DCV |
˚C, ˚F, EDIT, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf |
||||
| Analog output | Output specification (Max. 4points) |
Voltage output(SSR) 4points |
ON voltage : 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms) |
||
Current output(SCR) 4points |
4~20mA DC(Load resistor : Max. 600Ω) |
||||
| Output type | Control output(Normal, Heating· Cooling-Option)/Transmission output(PV, SP)/Auxiliary output |
||||
| Output accuracy | ±0.3%(D/A 14bits) |
||||
| Digital input | Contact point specification |
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
|
|||
| Contact point function |
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture)
|
||||
| Digital output | Contact point quantity | 12points base(Additional 20points by option) |
|||
I/O1 |
A-contact : 8points Relay / C-contact : 4points Relay |
A-contact |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
||
I/01,2 | I/O1 + Additional 20points A-contact relay |
C-contact | Normal open(Max. 30V DC/1A, 250V AC/1A) |
||
I/03 |
A-contact : 8points Relay |
Normal close(Max. 30V DC/1A, 250V AC/1A) |
|||
| Signal type | Inner signal(8points) On/Off signal(7points) Logical signal(8points) Error signal(1point) User signal(1point) |
||||
Time signal(8points) Fix· Programmable end signal(2points) DI signal(16points) Sensor open signal(1point) Ref signal(2points) |
|||||
Alarm signal(4points) Up· Soak· Down signal(3points) Manual signal(12points) Fix timer signal(1point) |
|||||
Run signal(1point) Wait signal(1point) Seg alarm signal(4points) |
|||||
| Program | Pattern/Segment | 80 Patterns/1200 Segments |
|||
| Segment time | Max. 999hours 59minutes 59seconds |
||||
| Function | Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode |
||||
| Repetition | Pattern/Segment repeat operation |
||||
| PID control | PID groups | 6 PID groups(5 Zone PID groups + 1 Deviation PID group or 6 Seg PID groups) |
|||
| PID type | Zone PID, Deviation PID, Seg PID |
||||
| Auxiliary functions | Changeable tuning point, PID tuning gain, Selectable disease control code |
||||
| Data back-up | Storage media | Internal memory(64MB), SD/SDHC card(FAT32 format) |
|||
| Logging function | Program pattern/Parameter can be backup and restored, PV/SP can be stored. (You can use the SD card, data backup and data transfer of internal memory can be) |
||||
| Communication | Interface | Basic : Flexible to change between RS485/RS232C by DIP switch, Max. 31 nodes. Max. 115,200 bp |
|||
Option : Ethernet(TCP/IP) *In case of selection of ethernet, RS232C/485 is not available |
|||||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU) |
||||
| Power | Rated voltage | 24VDC 22VA Max. |
|||
| Lithium battery | For setup data retention(CR2032) |
||||
Model code
| Model | Additional code | Contents | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEMP1 | □ | 0 | 0 | - | □ | □ | / | □ | / | □ | |
| Size |
2 | 4.3inch wide |
|||||||||
| 3 | 5inch wide |
||||||||||
| 5 | 5.6inch |
||||||||||
| 9 | 9inch wide |
||||||||||
| Control method |
0 | Normal control |
|||||||||
| 1 | Heating·Cooling control |
||||||||||
I/O board |
0 | I/O1 (DO12points, DI16points) |
|||||||||
| 1 | I/O1, 2 (DO32points, DI16points) |
||||||||||
| 2 | I/O3 (DO8points, DI8points) |
||||||||||
SD card |
N | None |
|||||||||
| SD | SD card |
||||||||||
Ethernet communication |
- | None |
|||||||||
| CE | Ethernet(TCP/IP) |
||||||||||
