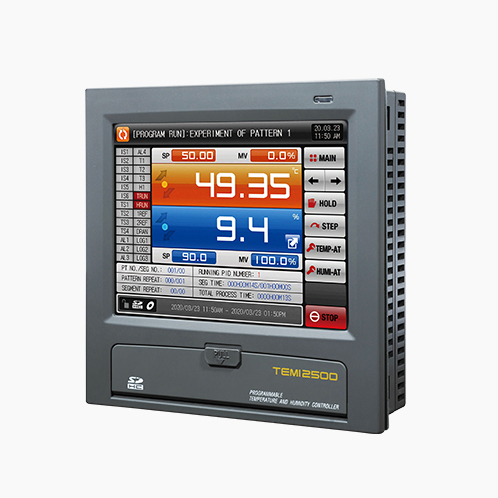

TEMI2500
TEMI2700

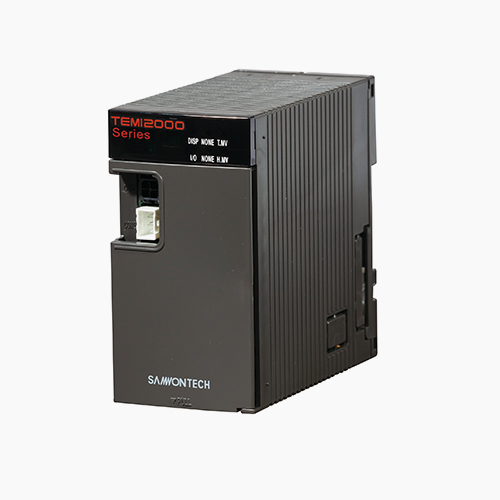

CONTROL

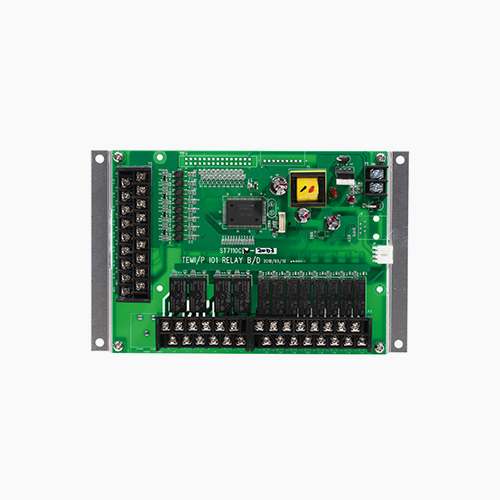

I/O1 Board
I/O2 Board

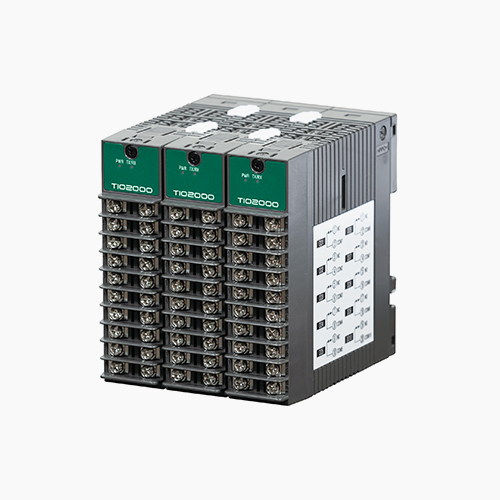

TIO2000

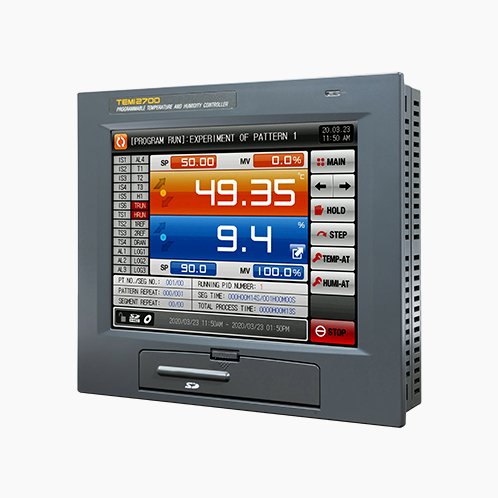

Touch type programmable temperature and humidity controller
TEMI2000 SERIES
It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
-
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
-
Optimizing PID group
Precision control by 6 group of TEMP./HUMI. and 3 group of temperature only
-
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
-
Specialized humidity control
Humidity control algorithm according to the equipment size implements a stable control
-
Heating·cooling control
Heat and cooling control by equipments (Option)
-
Touch screen interface
Easy access to setup and operate with touch screen
-
Digital recorder function
Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required
-
SD memory card support
The pattern and parameter can be up/download via SD memory card
-
Multi-language system
Supporting of various languages of korean, english, Chinese, Japanese and russian
-
Powerful communication
Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option
-
Free PC software
Free PC multi-monitoring software for communication and SD viewer for data management of SD data
-
Operation time management
Display of the operation starting time, estimated termination time and operation time up to now
Supporting SD memory card
-
Selectable Initial screen
Selectable Initial screen User can choose appropriate initial screen
-
Editable Error Screen
Editable Error Screen Self-designed picture can be used.
-
Electronic Album
Company and product profiles can be displayed
-
Data recording with SD card
- Data acquisition of process value.
- Up/Download parameter and pattern data.

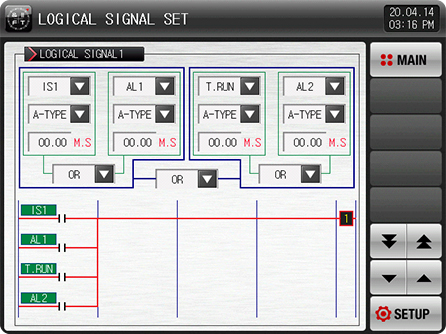

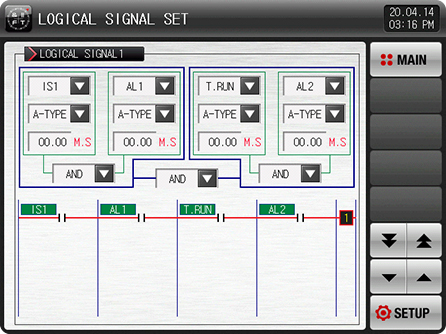

Logical signal set
The combination of the various signals is possible and logical output is possible(AND, OR, A/B contact, Timer operation possible)

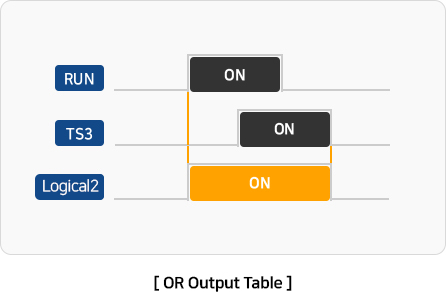

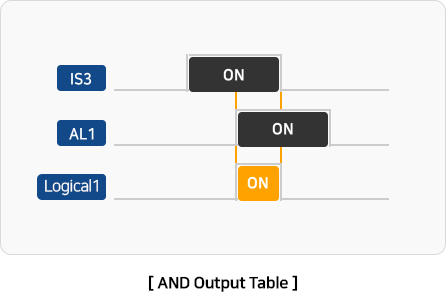

An example of the Logical signal behavior

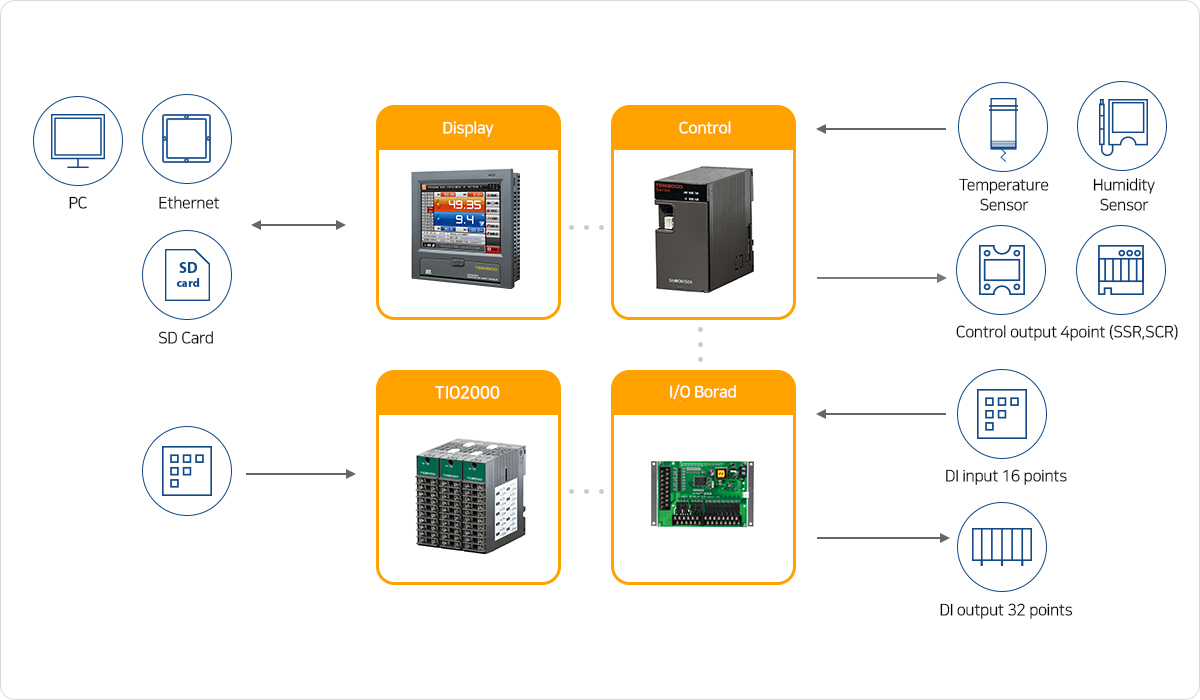

Separated hardware
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability
| Group | Item | TEMI2500 | TEMI2700 | TIO2000 | |
|---|---|---|---|---|---|
| Screen | Display | 5.7* TFT-LCD |
7.5* TFT-LCD |
- | |
| Resolution | 640(W) x 480(H) |
- | |||
| Language | Korean, English, Chinese (Simplified, Traditional), Japanese, Russian |
- | |||
| Font | 3 kinds of PV font(Head/Norm/Art) |
- | |||
| User screen | 16 customized user interface fod screen by user |
- | |||
| Mount type | PANEL mount, VESA mount(MIS-D 75) |
- | |||
| Analog input | Number of point | 2points(TEMP. : 1point, HUMI. : 1point) |
- | ||
| Type | TEMP. |
PT1 100Ω |
-90.00 ~ 200.00℃ |
- | |
PT2 100Ω |
-90.00 ~ 300.00℃ |
- | |||
DCV |
-1.000 ~ 2.000V (-100.0 ~ 200.00℃) |
- | |||
HUMI. |
PT1 100Ω |
-10.0 ~ 1100.00℃ (0.0 ~ 100.0%) |
- | ||
DCV |
1.000 ~ 5.000V (0.0 ~ 100.0%) |
- | |||
| Sampling time | Each temperature and humidity 250ms |
- | |||
| Input accuracy | TEMP. |
±0.1% of full scale ±1 digit |
- | ||
HUMI. |
±1.0% of full scale ±1 digit |
- | |||
| Bias | Each 4points piece bias for temperature and humidity |
- | |||
| Analog output | Output specification (Max. 4points) |
Voltage output(SSR) 4points |
ON voltage : 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms) |
- | |
Current output(SCR) 4points |
4~20mA DC(Load resistance : Max. 600Ω) |
- | |||
| Output type | Control output/Transmission output(PV, SP) |
- | |||
| Output accuracy | ±0.3% (D/A 14bits) |
- | |||
| Digital input | Contact point specification |
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
|
42point Max. , 14point/UNIT(3sets connectable) Contact capacity : 12V DC, 10mA Max. |
||
| Contact point function |
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture)
|
- | |||
| Digital output | Contact point quantity | 12points base(Additional 20points by option) |
- | ||
4points base C-contact relay |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
- | |||
Normal close (최대 30V DC/1A, 250V AC/1A) | - | ||||
8points base A-contact relay |
Normal open (최대 30V DC/1A, 250V AC/1A) |
- | |||
Additional 20points A-contact relay(Option) |
- | ||||
| Signal type | Inner signal(10points) On/Off signal(TEMP. 10points, HUMI. 5points) Logical signal(3points) Error signal(1point) User signal(1point) |
- | |||
Time signal(4points) Fix· Programmable end signal(2points) Dl signal(16points) Sensor open signal(2points) Ref signal(2points) |
- | ||||
Alarm signal(8points) Up· Soak· Down signal(6points) Manual signal(12points) Fix timer signal(2points) |
- | ||||
RUN signal(2points) Wait signal(2points) Drain signal(1point) |
- | ||||
| Program | Pattern/Segment | 120 Patterns/1200 Segments |
- | ||
| Segment time | Max. 999hours 59minutes 59seconds |
- | |||
| Function | Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode |
- | |||
| Repetition | Pattern/Segment repeat operation |
- | |||
| PID control | PID groups | 9 PID groups(6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
- | ||
| PID type | Zone PID |
- | |||
| Auxiliary functions | Changeable tuning point, PID tuning gain, Selectable HUMI. control code |
- | |||
| Data back-up | Storage media | SD/SDHC card(FAT32 Format) |
- | ||
| Logging function | Program pattern/Parameter can be backup and restored, PV/SP can be stored. |
- | |||
| Communication | Interface | Basic : Flexible to change between RS485/RS232C by switch, Max. 31 nodes. Max. 115,200 bps, |
- | ||
Option : Ethernet(TCP/IP) *In case of selection of ethernet, RS232C/485 is not available |
- | ||||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU) |
- | |||
| Power | Rated voltage | 24VDC 22VA Max. |
24V DC 1.3VA Max. | ||
| Lithium battery | For setup data retention(CR2032) |
- | |||
Model code (TEMI2000)
| Model | Additional code | Contents | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEMI2 | □ | 0 | 0 | - | □ | □ | / | □ | / | □ | |
| Size |
5 | 5.7inch (IP65 certification) |
|||||||||
| 7 | 7.5inch |
||||||||||
| Control method |
0 | Normal control |
|||||||||
| 1 | Heating·Cooling control |
||||||||||

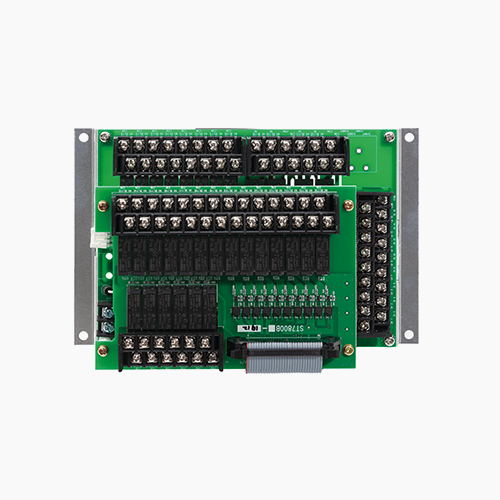

I/O board |
0 | I/O1 (DO12points, DI16points) |
|||||||||
| 1 | I/O1, 2 (DO32points, DI16points) |
||||||||||
SD card |
SD | SD card(ST'D) |
|||||||||
Ethernet communication |
- | None |
|||||||||
| CE | Ethernet(TCP/IP) |
||||||||||
Model code (TIO2000)
| Model | Additional code | Contents | |
|---|---|---|---|
| TIO2000 | - | □ | |
DI |
A | DI 14points |
|
