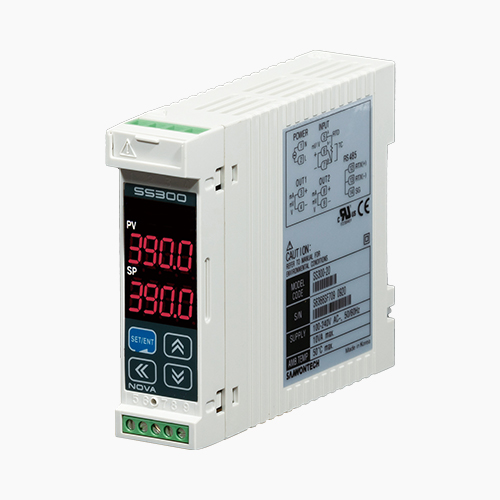

DIN RAIL取付型デジタル信号変換器

NOVA300 SS SERIES

It is a DIN RAIL mounting type digital signal converter.

  • High accuracy control with 18bit A/D convertor ±0.2% of full scale ±1 digit

    Memory and display function of high and low temperature value

    Slim rail type

    Input bias function

    1point input signal convert output support as standard(Max. 2points)

    Various communication protocol support(Modbus and etc)

製品についてお問い合わせ
.
Group SS330
Size
22.5(W)×75(H)×91.9(L)
PV display
Each 4 digits
Sampling time
250ms
Analog input Type/Accuracy
1point(Universal input) / ±0.2% of full scale ±1digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC (4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
Fixing 1 point + 1 point
Output type
Retransmission output (PV)
RET
Current output : 4 ~ 20mA, 0 ~ 20mA
Voltage output : 0 ~ 100mV, 0 ~ 5V / 0 ~ 10V, 1 ~ 5V
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Max. 19200bps
Power
100~240V AC, 50/60Hz, 10VA Max.

Model code

Model Additional code Contents Remark
SS3 □ 0 - □ □ / □ / □
Size
 0
22.5 * 75 (Rail type)
Retransmission output1
A
4 ~ 20mA
B
0 ~ 20mA
1
0 ~ 100mV
2
0 ~ 10V
3
0 ~ 5V
4
1 ~ 5V
Power
 0
100 ~ 240V AC
1
24V DC
Option
 RS
RS485
Retransmission output2(Option)
4 ~ 20mA
4 ~ 20mA
0 ~ 20mA
0 ~ 20mA
0 ~ 100mV
0 ~ 100mV
0 ~ 10V
0 ~ 10V
0 ~ 5V
0 ~ 5V
1 ~ 5V
1 ~ 5V
1ManualInstruction manual
Communication manual
Software manual
2CatalogueCatalogue
3DimensionDimension
4SoftwareSoftware
