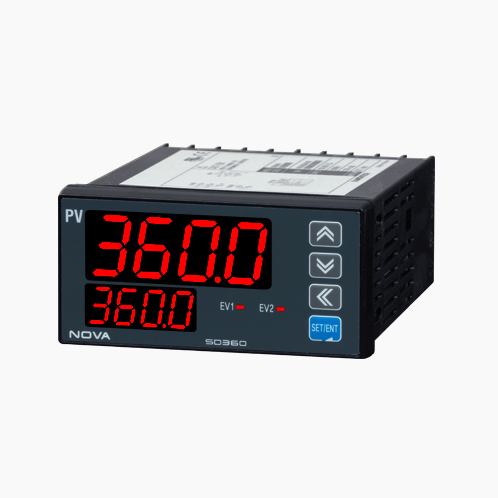

SD360

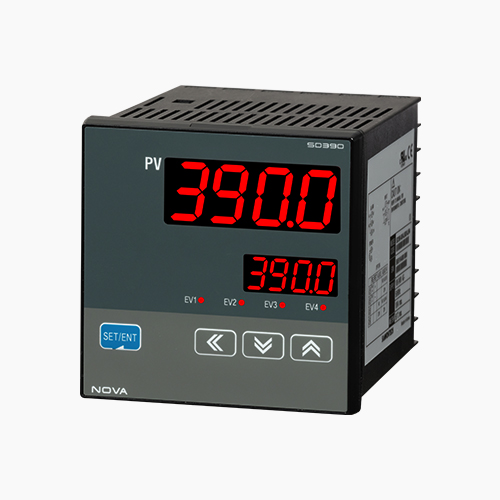

SD390
SD360

SD360

SD390

SD390

エコノミー汎用デジタル指示計

NOVA300 SD SERIES

It is an economical universal digital indicator.

  • High accuracy control with 18bit A/D convertor ±0.2% of full scale ±1 digit

    Various communication protocol support(Modbus and etc.)

    2 points alarm output support as standard(Max.4 points)

    Memory and display function of high and low temperature value

    Input bias function

    PV retransmission output

製品についてお問い合わせ

Powerful Comm. Funtion

Protocol - PC LINK, MODBUS(ASCⅡ, RTU), SYNC Master, Slave in case of RS485 communication Max. 1.2Km, Max. 31 slave controller multi-drop


Composed example


Group SD360 SD390
Size
96(W)×48(H)×100(L)
96(W)×96(H)×100(L)
PV display
Each 4 digits
Sampling time
250ms
Analog input Type/Accuracy
1point(Universal input) / ±0.2% of full scale ±1digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC (4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
Fixing 1 point
Output type
Retransmission output (PV) or Loop Power Supply
Ret
4 ~ 20mA DC (Resistance : Max. 600Ω)
Digital
output		 Quantity
A : 2 points
A : 2 points + 2 points
Specification
Max. 30V DC/1A, 250V AC/1A
Signal type
Alm 2 points
Alm 4 points
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Max. 19200bps
Power
100~240V AC, 50/60Hz, 10VA Max.

Model code

Model Additional code Contents Remark
SD3 □ 0 - 0 □ / □
Size
 9
96 * 96
6
96 * 48
Power
 0
100 ~ 240V AC
1
24V DC
Option
 RS
RS485
Att.1
RET
Retransmission output
Att.1
AML3
Relay 1point (390 only)
AML4
Relay 1point (390 only)
Att.1
Att.1) RS, RET, ALM4 options cannot be consolidated
