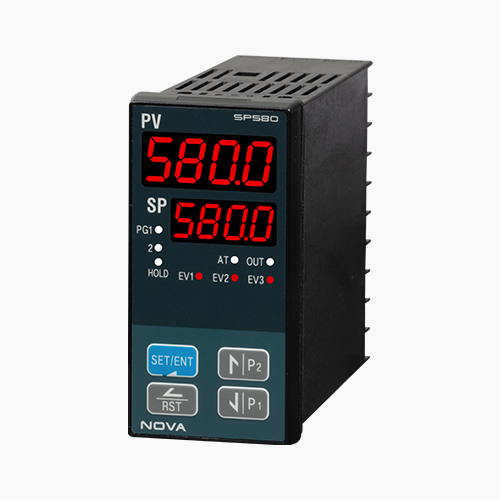

SP580

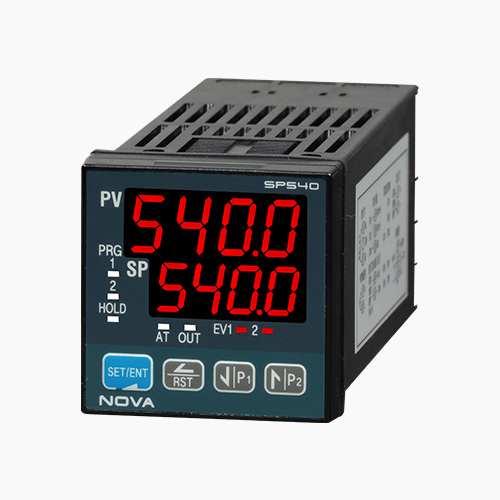

SP540

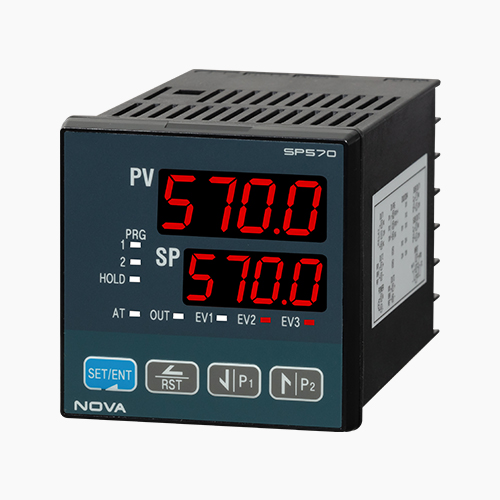

SP570

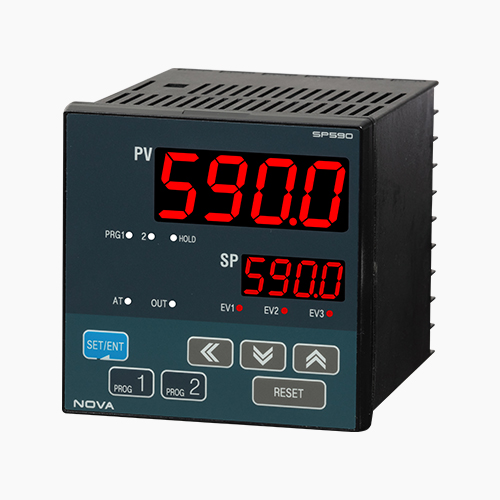

SP590
SP580

SP580

SP540

SP540

SP570

SP570

SP590

SP590

2pattern programmable general temperature controller

NOVA500 SP SERIES

It is a high accuracy universal temperature controller capable of program operation.

  • High Precision control with 18bit A/D convertor ±0.1% of full scale ±1 digit

    2 Patterns/30 Segments

    Various auxiliary output support(IS, TS, PTend, UP, SOAK, DOWN and etc.)

    Run/Stop, Hold, Step, Pattern by external input selectable

    Auto PID calibration(AT Gain)

    Various communication protocol support(Modbus and etc)

    3points alarm and 2points retransmission output support

    Display of running status in auxiliary output

    Input piece bias funcion(Max. 4points)

    Function to prevent over-shoot(Fuzzy)

Product Inquiry

Powerful Fuzzy function

In case when SP changes often, Fuzzy manages over-shoot with best results


PID Auto Revision (AT Gain)

Set gain values when PID parameters set by Auto-Tuning
To make faster response time, decrease the gain value and to make better control value stabilization, increase the gain value.
But, less gain value leads more hunting.


FREE PC S/W

Support free PC S/W which can control/monitor the NOVA series on user PC, and improves user convenience and economics.

Group SP540 SP570 SP580 SP590
Size
48(W)×48(H)×100(L)
72(W)×72(H)×78(L)
48(W)×96(H)×100(L)
96(W)×96(H)×100(L)
PV/SP display
Each 4 digits
Sampling time
250ms
Control mode
Normal control
Operation mode
Program
Pattern/Segments
2 Patterns/30 Segments
PID control
4 PID groups(3 Zone PID groups + 1 Deviation PID group)
Analog input Type/Accuracy
1point(Universal input)/±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
3points(Universal output)
5points(Universal output)
Output Type
Control output, Retransmission output(PV, SP, MV)
SSR
18V DC(Resistance : Min. 600Ω)
SCR
4 ~ 20mA DC, 0 ~ 20mA(Option)(Resistance : Max.600Ω)
Relay
Max. 30V DC/1A, 250V AC/1A
Digital
output		 Quantity
A:1point, C:1point, O.C 4points(Option)
A : 2points, C : 1point, O.C 4points(Option)
Specification
Max. 30V DC/1A, 250V AC/1A / O.C 24V DC 50mA less
Signal type
Is 2points, Alm 3points, Ts/Run/Pt end/Up/Soak/Down/Heat each 1point
Digital
input		 Specification
2points(Contact point capacity : Max. 12V DC, 10mA)
Function
Run/Stop, Hold, Step, Ptn select
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync(Master), Max. 19200bps
Power
100 ~ 240V AC, 50/60Hz, 10VA Max.

Model code

Model Additional code Contents Remark
SP5 □ 0 - □ □ / □
Size
 9
96 * 96
8
48 * 96
7
72 * 72
4
48 * 48
Control method
 0
Normal control
Power
 0
100 ~ 240V AC
1
24V DC
Option
 RS
RS485
Att.1
DI
DI 2points
LPS
24V DC
Att.2
AOUT
Analog output (540 only)
Att.3
DO
DO 4points (590,580 only)
DO2
DO 2points
Att.4, Att.5
DO4
DO 4points
Att.6, Att.7
Att.1) RS/DI options cannot be consolidated
Att.2) 24V DC sensor power
Att.3) In case of SP540 /AOUT, Options SUB RELAY N/A
Att.4) DO2/DI options cannot be consolidated
Att.5) SP540 /DO2/AOUT options cannot be consolidated, SUB RELAY N/A
Att.6) SP570 /DO4/DO2/AOUT/RS/DI options cannot be consolidated
Att.7) SP540 /DO4/DO2/AOUT/RS/DI options cannot be consolidated, SUB RELAY N/A
