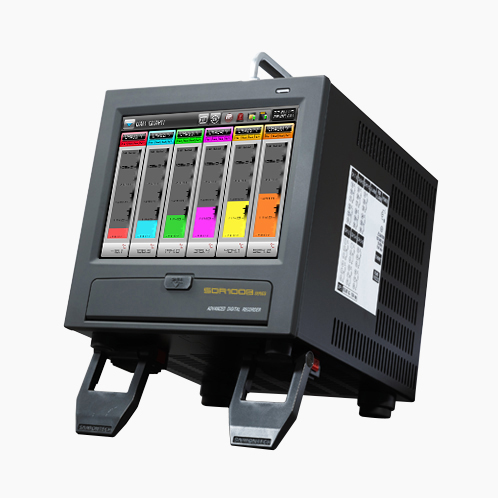

PORTABLE
SDR100E SERIES
2、4 、6、12チャンネルタッチタイプデジタルレコーダー
SDR102E / SDR104E / SDR106E / SDR112E

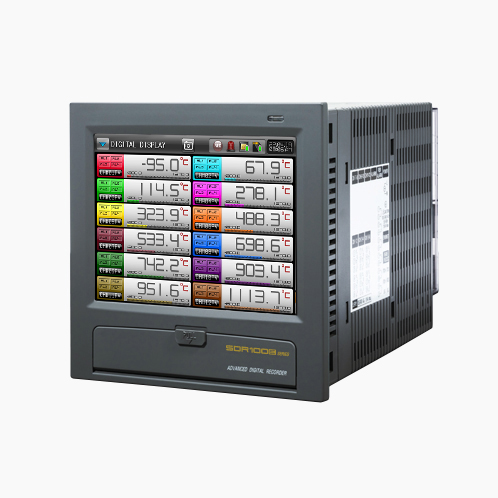

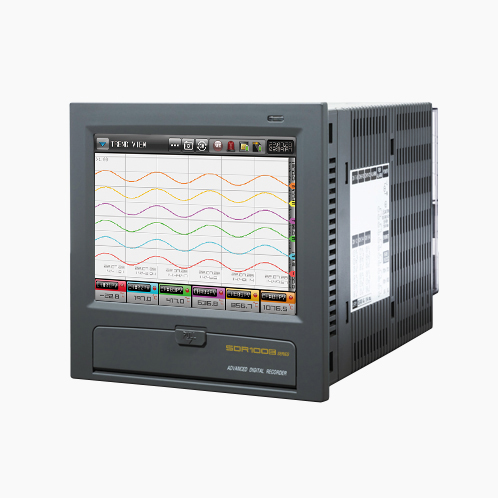

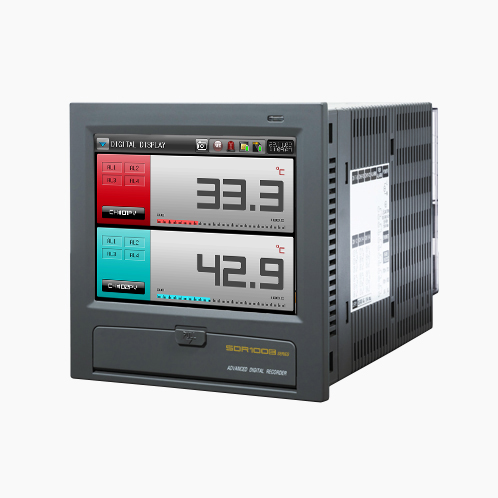

It is a digital recorder without paper. It supports the high screen quality TFT_LCD touch screen and SD card. It is a product with rapid graph searching function.
Brightness and clarity
640×480 TFT-LCD, 256K Color
Touch screen display
Touch screen interface
Canned message on recording graph
Allowable screen capturing
Fast record data search
Apply the FSA.(Fast Searching Algorithm)
About 1 sec. in researching 1G byte data
Identifiable previous data during recording
Previous graph search during recording
Memory Size
Internal memory : 4G byte (Permanent)
(Can store for about 6 years based on 1 sec / 12 channels)Exterior memory : Free 4G byte SD
Convenient message function
Input & display messages on a graph
Easy short cut message function
Auto input : Events and other messages
Message check in saved graphs
Automatic Data Recovery Function
Supports automatic recovery of missing data when the card is removed and re-inserted while saving the SD card
(Internal memory / SD card simultaneous storage)
Zoom in/out of data
Data can be analyzed by enlarging or reducing the data
Data Management
Available for sustainable storage with one file
Support for simultaneous storage, transmission and deletion of Internal/External(SD) memory
Available for parameter back up via external (SD) memory
History save function
Max. each 100 Errors, Alarms and Events histories
Can be saves as TEXT, CSV or PDF
Exploring data
Drag the screen to move freely and explore data
Operation/Application programs
Operational programs supports serial, ethernet
Save as various file formats (Excel, Text, etc.)
| Group | Item | SDR102E | SDR104E | SDR106E | SDR112E |
|---|---|---|---|---|---|
| Screen | Display | 5.7" TFT-LCD(640(W) X 480(H)) | |||
| Display type | Trend, Bar, Digital, Event, History of Error, Information(Alarm, Message, Memory capacity) | ||||
| Language | Korean, English, Chinese (Traditional, Simplified), Japanese, Polish | ||||
| Input section | Number of channel | 2 Channel | 4 Channel | 6 Channel | 12 Channel |
| Input types | TC | K, J, E, T, R, B, S, L, N, U, W, Platinel II, C | |||
RTD | Pt100(IEC), Jpt100(JIS), 1/100 Displayable | ||||
DCV | -5~10V, -10~20V, -1~2V, 0~2V, 0~5V, 1~5V, 0~10V, 0~20V, -10~20mV , -50~100mV, 0~20mV, 0~100mV(Scale : -30000 ~ 30000) | ||||
DCV unit | C, F, BLANK, %, Pa, kPa, %RH, mV, V, Ω, mmHg, kgF | ||||
TC/RTD unit | C, F | ||||
| Measurement interval | 500ms | ||||
| Input accuracy | ±0.1% of full scale ±1 digit | ||||
| Alarm function | Number of alarm | Setting of maximum 4 alarms per a channel | |||
| Alarm type | High/Low of PV, In/Beyond of PV range, Above of PV rise rate, Below of PV rise rate Above/Below deviation among channels. sensor open | ||||
| Alarm output (Option) | Contact point quantity | A contact point Relay 6points, 12points | |||
Normal open(Max. 30VDC 1A/250VAC 1A) | |||||
| Remote input (Option) | Contact point quantity | 2points(Contact point Volume: Maximum 12VDC, 10mA) | |||
| Contact point function | DI errors and cycle recording, Setting the DI detection leg-time | ||||
| Product size and weight | Size | 144(W) X 144(H) X 188(D) mm | |||
| Weight | 1.1Kg | 1.2Kg | 1.3Kg | ||
| Case material | PC + ABS | ||||
| Data storage function | Internal memory | Flash memory(4GB)/Non-volatile | |||
| Exterior memory | SD/SDHC card(FAT 32 format) | ||||
| Save method | Save at the Interior/Exterior(SD card) memory | ||||
| Data type | Recorded data & Message | ||||
| Data format | Binary format | ||||
| Communication | Interface | Basic RS232C/485 selection, Communication speed : Max. 115,200bps , Ethernet(TCP/IP) | |||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU) | ||||
| Power | Rated voltage | 100 ~ 240V AC, 50/60 Hz | |||
| Consumed electric power | 15VA Max. | ||||
Model code
| Model | Additional code | Contents | |||||||
|---|---|---|---|---|---|---|---|---|---|
| SDR1 | □ | □ | E - | N | □ | □ | / | □ | |
Channel | 02 | 2 Channel | |||||||
| 04 | 4 Channel | ||||||||
| 06 | 6 Channel | ||||||||
| 12 | 12 Channel | ||||||||
Alarm Output | N | None | |||||||
| A1 | Relay 6Points | ||||||||
| A2 | Relay 12Points | ||||||||
Remote Input | N | None | |||||||
| R1 | DI 2Points | ||||||||
Others | M1 | Computation Function | |||||||
| P1 | Portable Type | ||||||||
| 1 | Manual | Instruction manual | |
| Communication manual | |||
| SIMS Manual | |||
| BitEditor Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| BitEditor - Image editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
