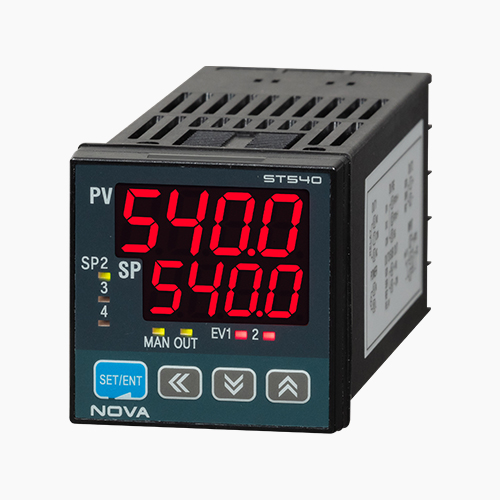

ST540

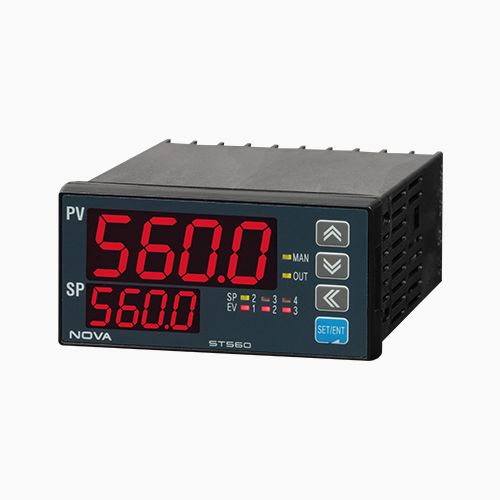

ST560

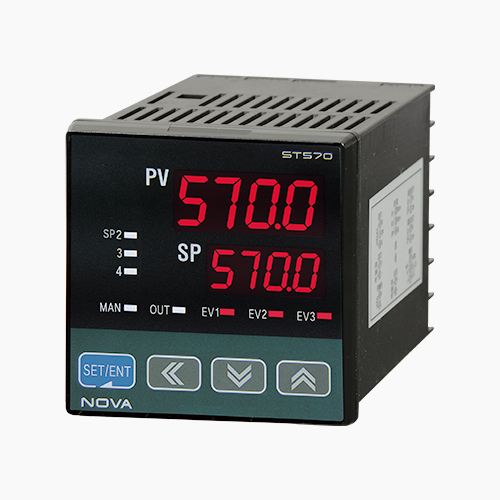

ST570

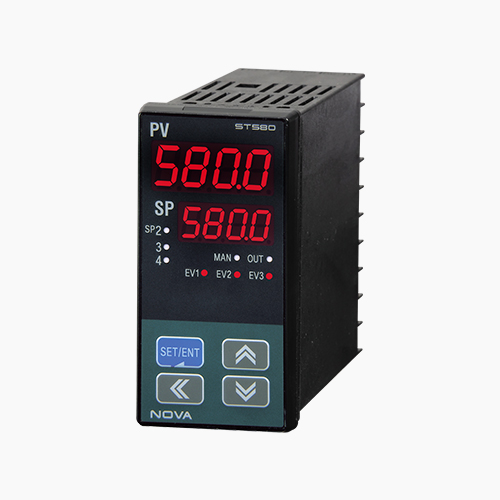

ST580

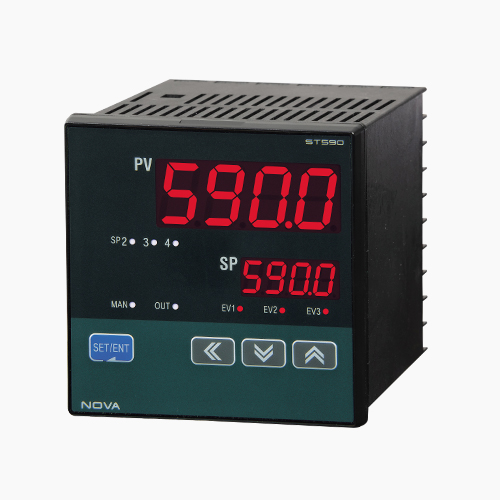

ST590

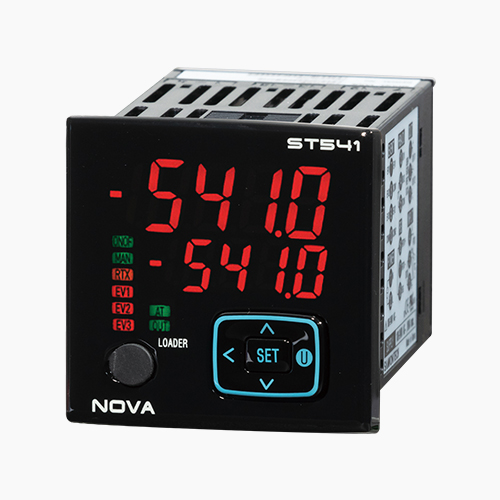

ST541

ST541

ST540

ST540

ST560

ST560

ST570

ST570

ST580

ST580

ST590

ST590

高精度汎用温度コントローラー

NOVA500 ST SERIES

It is a high accuracy universal temperature controller.

  • High Precision control with 18bit A/D convertor ±0.1% of full scale ±1 digit

    Auto/Manual output support

    Heating · Cooling control

    Reserve function of Run/End

    Run/Stop function

    Run/Stop by external input, SP selectable

    3points alarm and 2points retransmission outputs support as standard

    Display of running status in auxiliary output

    Input piece bias funcion(Max. 4points)

    Available function to prevent over-shoot(fuzzy)

    Auto PID calibration(AT Gain)

    Various communication protocol support (Modbus and etc.)

    Heater break alarm support(ST541)

    Easy change and setting up parameter, followed by front display loader(ST541)

    78mm thickness compact size(ST541)

    C omfortable keypad button, U.key (AT, Run/Stop, Auto/Man) : ST541

製品についてお問い合わせ

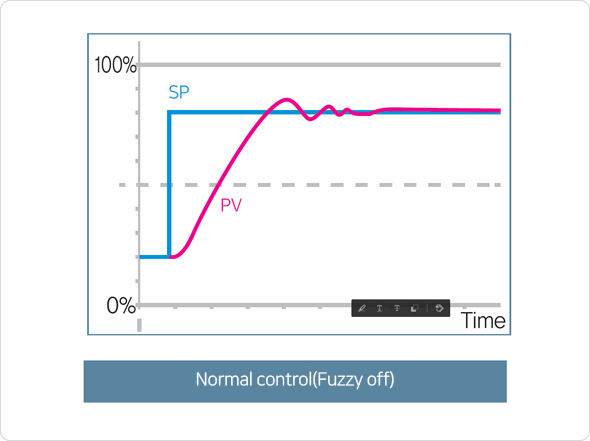

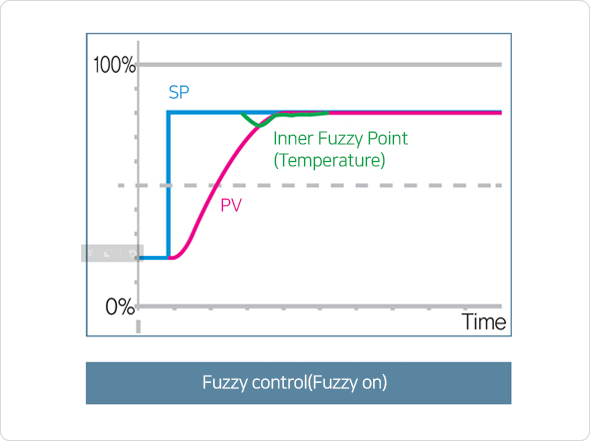

Power full Fuzzy function

In case when SP changes often, Fuzzy manages over-shoot with best results


PID Auto Revision (AT Gain)

Set gain values when PID parameters set by Auto-Tuning
To make faster response time, decrease the gain value and to make better control value stabilization, increase the gain value.
But, less gain value leads more hunting.

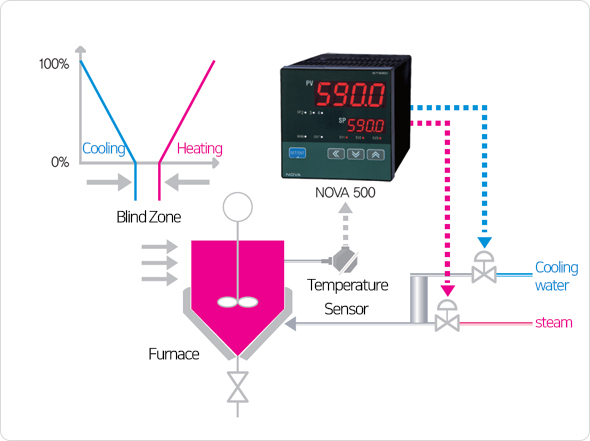

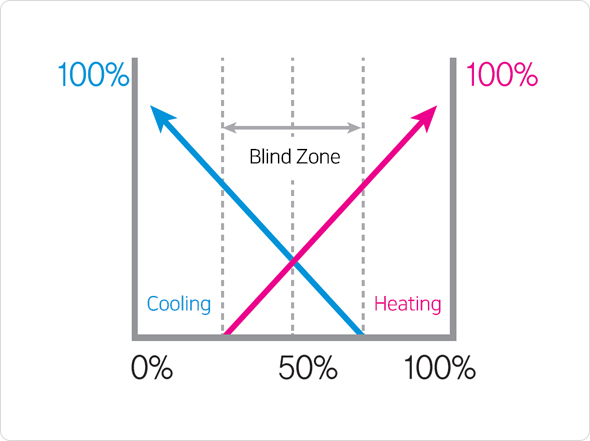

Heating·Cooling control

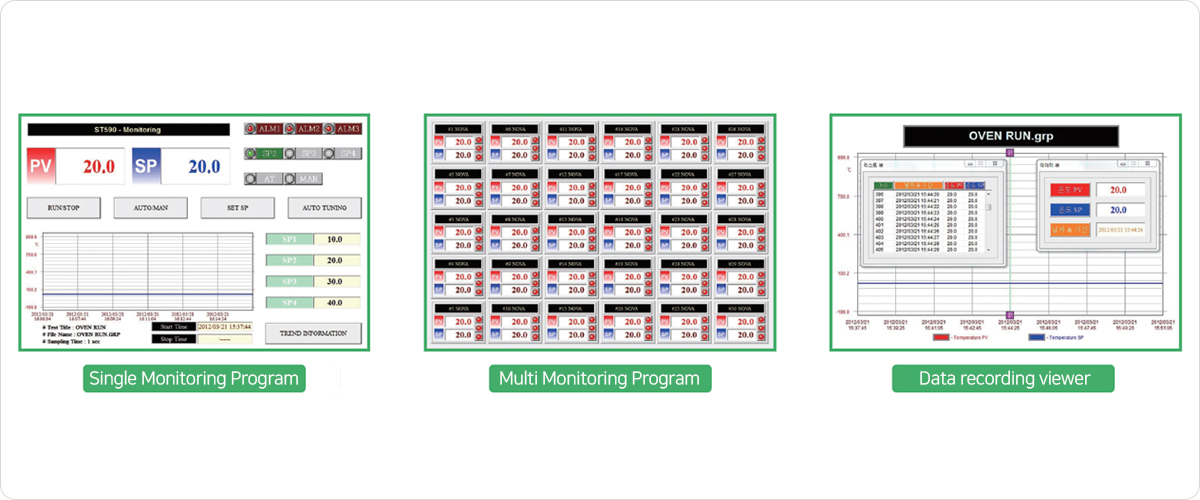

FREE PC S/W

Support free PC S/W which can control/monitor the NOVA series on user PC, and improves user convenience and economics.

Group ST541 ST540 ST560 ST570 ST580 ST590
Size
48(W)×48(H)×78(L)
48(W)×48(H)×100(L)
96(W)×48(H)×100(L)
72(W)×72(H)×100(L)
48(W)×96(H)×100(L)
96(W)×96(H)×100(L)
PV/SP display
Each 5 digits
Each 4 digits
Sampling time
250ms
Control mode
Normal control/Heating·Cooling control
PID control
4 PID groups(3 Zone PID groups + 1 Deviation PID group)
Temperature setting(SP)
SP 1 ~ SP 4
Analog input Type/Accuracy
1point(Universal input) /±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
3points(Universal output)
5points(Universal output)
Output type
Control output, retransmission output(PV, SP, MV) or loop power supply
SSR
12V DC
18V DC(Resistance : Min. 600Ω)
SCR
4 ~ 20mA DC, 0 ~ 20mA(Option)(Resistance : Max. 600Ω)
Relay
Max. 30V DC/1A, 250V AC/1A
Digital
output		 Quantity
A : 2points + 1point
A : 1point, C : 1point
A : 2points, C : 1point
Specification
Max. 30V DC/1A, 250V AC/1A
Signal type
Is 2points(541), Alm 3points, Run 1point, Heat 1point, Cool 1point
Digital
input		 Specification
2points(Contact point capacity : Max. 12V DC, 10mA)
Function
Run/Stop, SP select
Heater break alarm(HBA)
50A/800:1 CT
-
Communication
Max. 38400bps
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync(Master, Slave), Max. 19200bps
Power
100~240V AC, 50/60Hz, 10VA Max.

Model Code

Model Additional code Contents Remark
ST5 □ □ - □ □ / □ / □
Size
 9
96 * 96
8
48 * 96
7
72 * 72
6
96 * 48
4
48 * 48
Length
 0
Normal
1
Compact(541)
Control method
 0
Normal control
1
Heating·Cooling control
Power
 0
100 ~ 240V AC
1
24V DC
Option1
 RS
RS485
Att.1
DI
DI 2points
LPS
24V DC
Att.2
AOUT
Analog output (540 only)
Att.3
SUB
Relay 1point (541 only)
HBA
Heater break alarm (541 only)
Att.4
Option2(541 only)
 DCV1
0 ~ 20mA DC
DCV2
0 ~ 5V DC
DCV3
1 ~ 5V DC
DCV4
0 ~ 10V DC
Att.1) RS/DI options cannot be consolidated
Att.2) 24V DC sensor power
Att.3) In case of ST540 /AOUT, Options SUB RELAY N/A
Att.4) HBA/DI options cannot be consolidated, SCR control mode, N/A, CT800:1(50A) available
