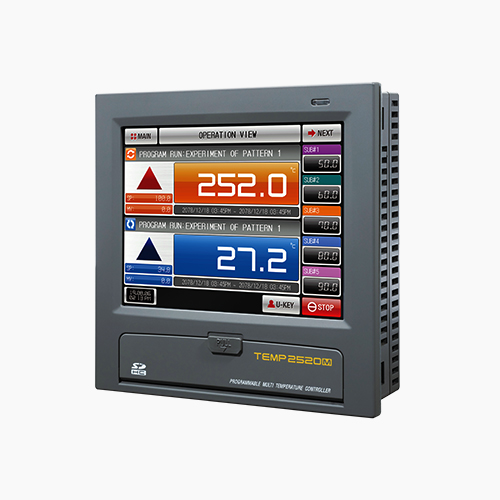

TEMP2520M

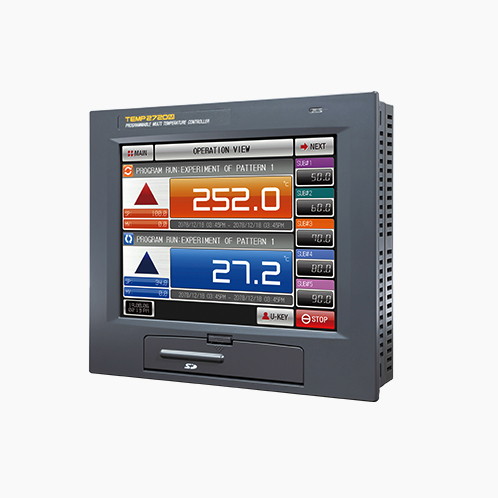

TEMP2720M

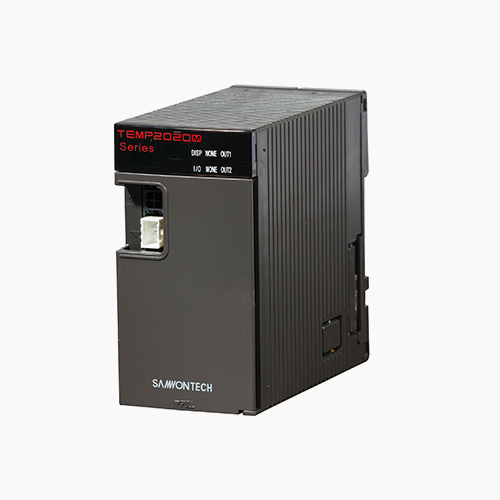

MAIN CONTROL
SUB CONTROL

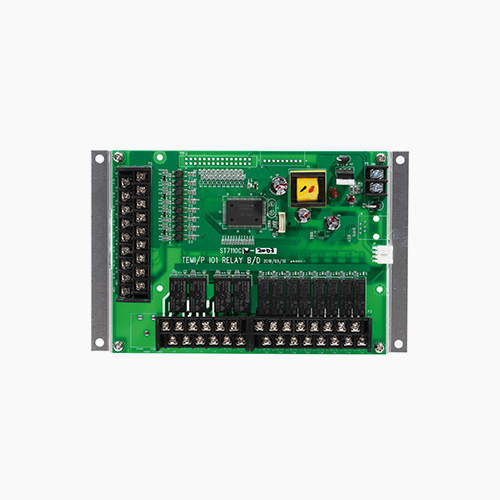

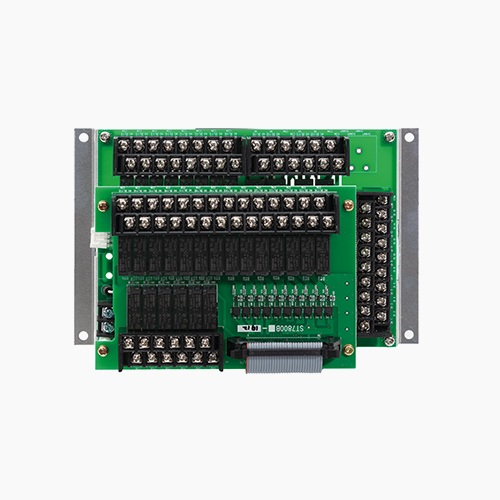

I/O1 Board
I/O2 Board
22チャンネルタッチタイププログラマブル温度コントローラー
TEMP2020M SERIES
It is a multi-channel programmable controller which supports high-definition TFT-LCD touch screen, SD card and multi-channel control function
-
Selection of channel for system
Control of 10 channel / 14 channel /18 channel /22 channel and selection of recording
-
High accuracy
Precision control with 18bit A/D convertor
±0.1% of full scale ±1 digit
-
Control PID of a variety
Temperature control PID group(5 Zone PID + 1 Deviation PID or 6 Seg PID)Zone, Deviation PID etc. Various PID offer
-
Various unit displays
Available 12 kinds of various unit to display under DCV sensor (˚C, ˚F, EDIT, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf)
-
Quick browse and data search
Explore file-based data trending
-
Operation time management
Display of the operation starting time, estimated termination time and operation time up to now
-
Total 24 channel digital recording
Real time monitoring and data saving for the present data of main channel, setting data and the present data of output quantity and sub-channel
-
Multi-language system
Supporting of various languages of korean, english, Chinese, Japanese and russian
-
SD memory card support
Data storing into the SD memory card and available for up/download for the set parameter
-
Powerful communication
Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option
-
Sufficient storage space
Internal memory : 4GB Maximum storage period : 5 years (12channels, stored every 1 second)
-
Free PC software
Free PC multi-monitoring software for communication and SD viewer for data management of SD data
Quick browse and data search
Available for file-based data trending and search
Supports high-speed data acquisition and various display functions
Support navigation bar for data display and search

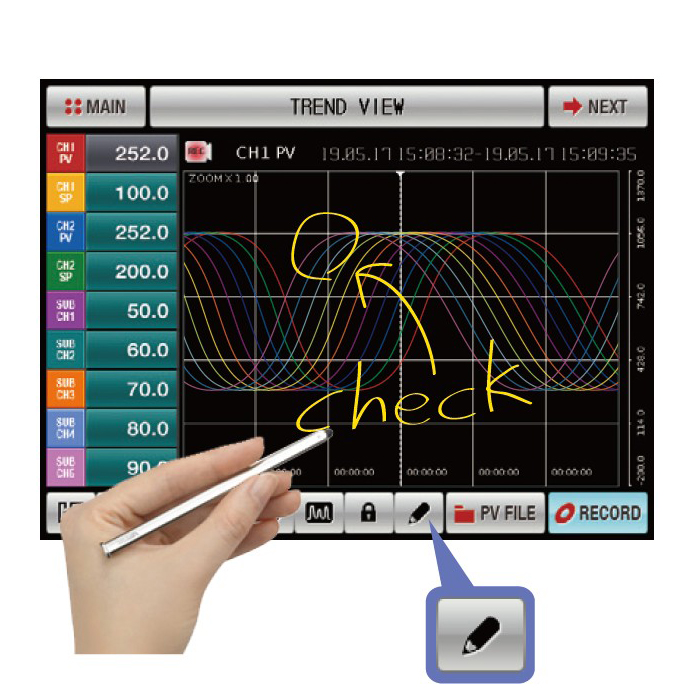

Available to note user’s memo on trend data
-

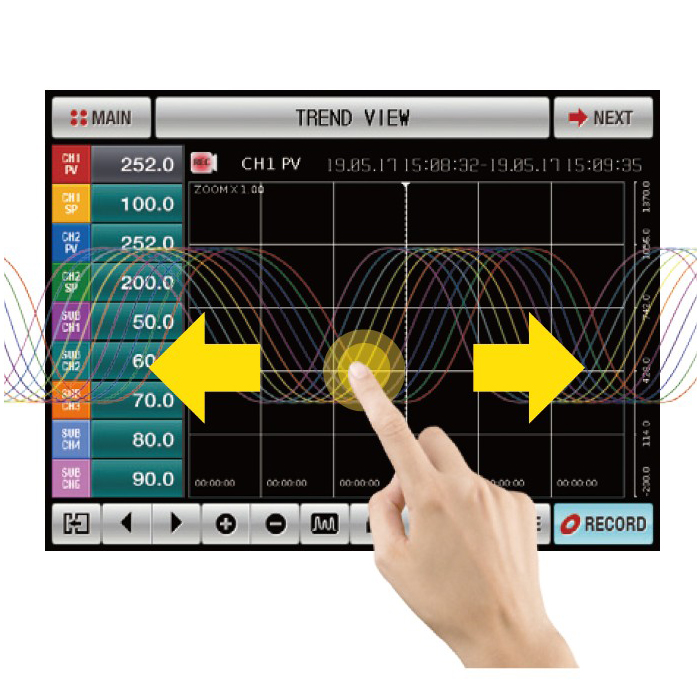

Exploring data
Navigate data by moving left / right
-
User notes
Available to note user’s memo
on data -

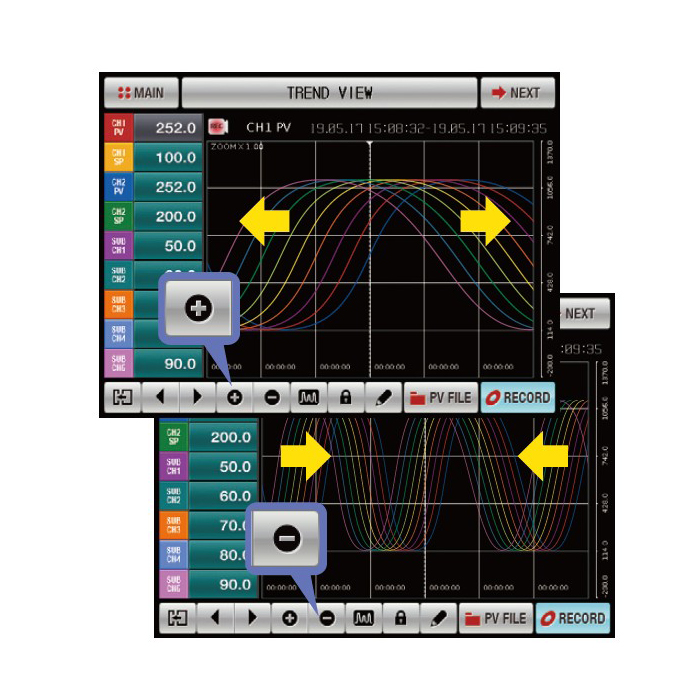

Zooming in / out of data
Available to zoom in or
out for analysis -

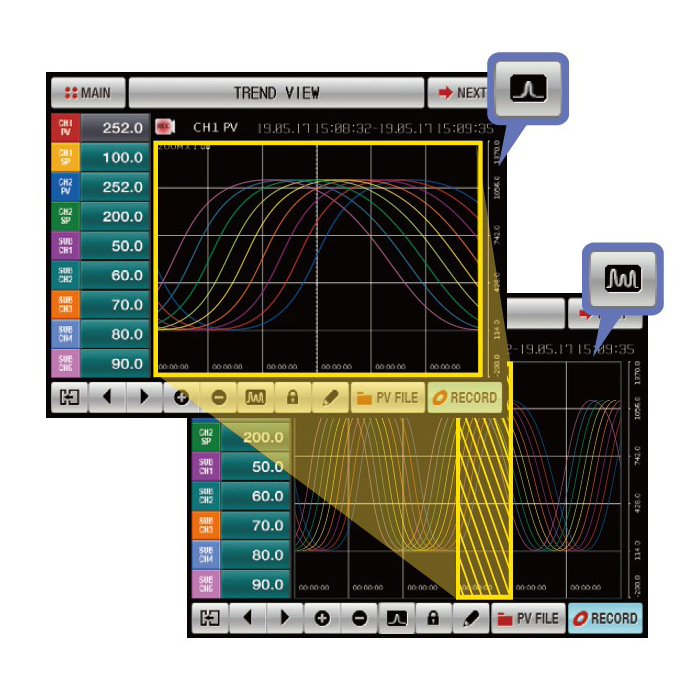

View data section
Available to analyze data by
enlarging and analyzing desired
data section in

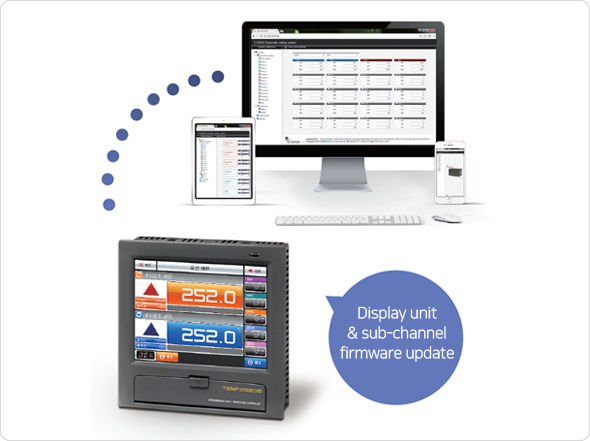

Internal web server
Available for display and sub-channel firmware updates via self-contained web server
Accessible through various devices such as PC, smartphone, tablet
Multiple access
Serial (RS232, RS485 selection), Simultaneous connection by Ethernet communication
Supports Modbus ASCII, Modbus RTU, Modbus TCP Universal Communication Protocol

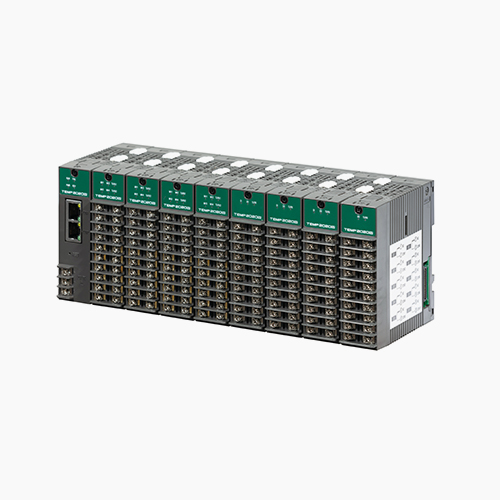

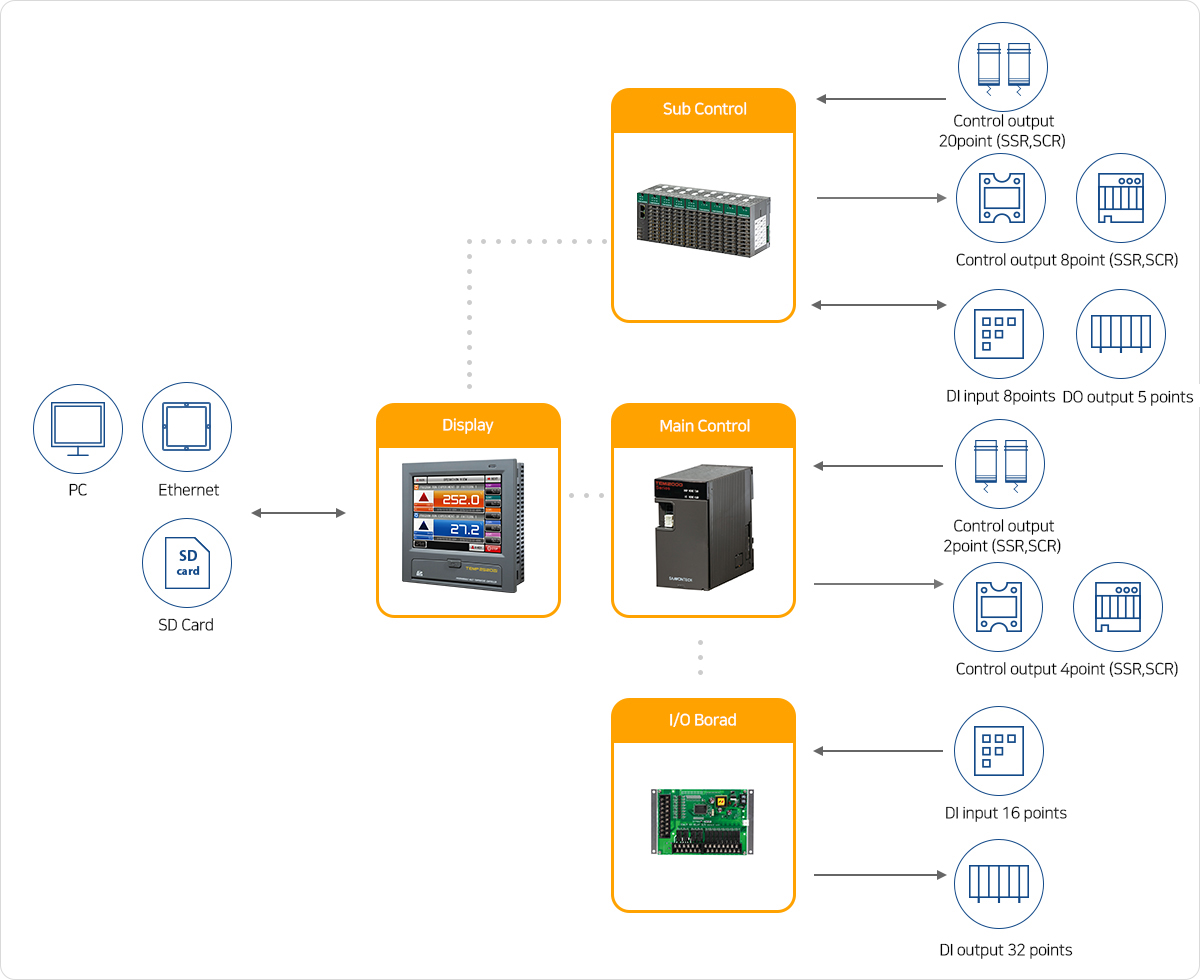

Separated hardware
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability
| Classification | Specified item | TEMP2520M | TEMP2720M | TEMP2020M |
|---|---|---|---|---|
| Screen | Display | 5.7* TFT-LCD |
7.5* TFT-LCD |
- |
| Resolution | 640(W) x 480(H) |
- | ||
| Language | Korean, English, Chinese |
- | ||
| Mount type | Panel mount, VESA mount(MIS-D 75) |
- | ||
| Control channel | Main channel | 2channel |
- | |
| Sub-channel | - |
Max. 20channel |
||
| Analog input | Input quantity | 2point(Universal input) |
20point(Universal input) |
|
| Sensor type | TC |
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
||
RTD |
Pt100(IEC), Jpt100(JIS), 1/100 availble to display |
|||
DCV |
0.4~2V, 1~5V, 0~10V, -10~20mV, 1~100mV (4~20mA, 0~20mA, External resistance 250Ω, 500Ω Attach) Scale : -1999 ~ 30000 |
|||
| Sampling period | 250ms/Channel |
|||
| Input accuracy | ±0.1% of full scale ±1 digit(A/D 18 bits) |
|||
| Input correction no | 8point interval correction and total correction |
6point/Channel | ||
| Display unit | TC/RTD |
˚C, ˚F |
- | |
DCV |
C, ˚F, Blank, %, ㎩, ㎪, %RH, ㎷, V, Ω, mmHg, kgf |
- | ||
| Analog output | Output specification (Max. 4point) |
Voltage output (SSR) 4point |
ON voltage : 24V DC |
ON voltage : 15V DC 1point/Channel |
Load resistance : Min. 600Ω / Pulse width : Min. 5ms |
||||
Current output (SCR) 4point |
4~20mA DC |
4~20mA DC, 0~20mA DC, 0~5V DC, 1~5V DC, 0~10V DC, 0~100mV DC | ||
Load resistance : Max. 600Ω |
Load resistance : Max. 550Ω | |||
| Output type | Control output/Transmission output(PV, SP)/Subsidiary output |
Control output | ||
| Output level | ±0.3%(D/A 14bits) |
|||
| Digital input | Contact point specification |
Basic 16point(Contact point capacity : Max. 12V DC, 10mA),
A contact point or B contact point operation selection |
8point | |
| Contact point function |
Run/Stop/Hold/Step, selectable run patterns, DI sensing delay time setting, selection of DI error screen(Display of error message or user setting photo)
|
|||
| Digital output | Contact point specification | Basic 12point(additional 20point when option is selected) |
- | |
C contact point relay basic 4point |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
- | ||
Normal close(Max. 30V DC/1A, 250V AC/1A) | - | |||
A contact point relay basic 8point |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
A contact point relay 5point | ||
A contact point relay additional 20point (IO2 option) |
- | |||
| Signal type | Inner signal(8point/Channel) On/Off signal(7point/Channel) Logical signal(3point) Error signal(1point/Channel) User signal(1point) |
|||
Time signal(8point/Channel) DI signal(16point) Sensor open signal(1point/Channel) Ref signal(2point/Channel) Alarm signal(4point/Channel) |
||||
Manual signal(12point) Wait signal(1point/Channel) Up· Soak· Down signal(3point/Channel) Seg alarm signal(4point/Channel) |
||||
Run signal(1point/Channel) Fix timer signal(1point/Channel) Fix· Programmable end signal(2point/Channel) |
||||
| Program | Pattern/Seg Q’ty | 500 pattern/Channel, 99 segment/Channel |
- | |
| Segment set time | Max. 999H 59M 59S |
- | ||
| Function | Ascending/Descending change ratio, standby operatiion, operation start condition, input pattern name, recovery mode after blackout, operation at pattern termination |
- | ||
| Repetition | Entire repetition and range repetition |
- | ||
| PID control | PID group | 6 PID group(Zone PID 5 group + deviation PID 1 group or Seg PID 6 group)/Channel |
1 groups/Channel |
|
| PID type | Zone PID, Deviation PID, Seg PID |
Zone PID |
||
| Etc functions | Setting the auto tuning reference point, PID time constant copy, differential control method selection |
Setting the auto tuning reference point, differential control method selection |
||
| Data back-up | Storage media | SD/SDHC card(FAT32 format) |
- | |
| Storage function | Program pattern/Parameter set data backup and recovery, Save PV/SP |
- | ||
| Communication | Communication spec | Available to choose RS485/RS232C with switch, available for connection of max 31units, Communication speed: Max.115,200bps |
- | |
Ethernet(TCP/IP) |
||||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU, TCP) |
|||
| Power | Electric souce | Max. 24V DC 22VA |
Max. 24V DC 15VA | |
| Lithium cell | Keeping the setting data(CR2032) |
|||
Model code
| Model | Additional code | Contents | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TEMP2 | □ | 2 | 0 | M | - | 0 | □ | / | □ | / | □ | / | □ | |
| Size |
5 | 5.7inch (IP65 certification) |
||||||||||||
| 7 | 7.5inch |
|||||||||||||
I/O Board |
0 | I/O1 (DO12points, DI16points) |
||||||||||||
| 1 | I/O1, 2 (DO32points, DI16points) |
|||||||||||||
SD Card |
SD | SD card(ST'D) |
||||||||||||
Sub channel DIO |
N | None |
||||||||||||
| A | DIO (DO5points, DI8points) |
|||||||||||||
Sub channel |
08 | 8channels |
||||||||||||
| 12 | 12channels |
|||||||||||||
| 16 | 16channels |
|||||||||||||
| 20 | 20channels |
|||||||||||||
| 1 | Manual | Operation manual | |
| Installation manual | |||
| Communication manual | |||
| SIMS Manual | |||
| PME Manual | |||
| BitEditor Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| PME - Integrated parameter editor software | |||
| BitEditor - Image editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
