エコノミープログラマブル温度コントローラー

SP790

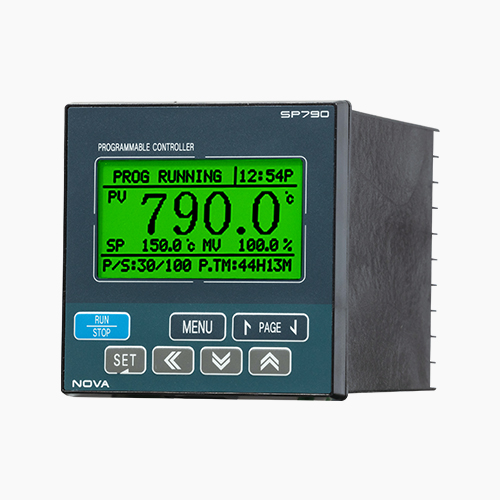

It is temperature programmable controller, It is an economical product that has normal control and heating/cooling control functions and designed to DIN standard(96x96mm)

  • 30 Patterns/300 Segments

    Program, Fix, On/Off, Heating · Cooling, Auto/Man function

    Easy change and setting up parameter, follwed by display name in LCD

    29 types of various auxiliary outputs(IS, TS, PTend, UP, SOAK, DOWN and etc.)

    Run/Stop, Hold, Step, Pattern by external input selectable

    SSR, SCR(4~20mA DC), Relay control output support

    8points relay output full scale 4points O.C output, 4points DI support

    Display of running status in auxiliary output

    Input piece bias function(Max. 10point)

    Available to prevent over-shoot(Fuzzy)

    Auto PID calibration(AT Gain)

    Various communication protocol support(Modbus and etc.)

製品についてお問い合わせ

-

Group SP790
Size
96(W)×96(H)×100(L)
PV/SP display
LCD/Each 5 digits
Sampling time
250ms
Control mode
Normal, H/C control
Operation mode
Program/Fix
Pattern/Segments
30 Patterns/300 Segments
PID control
4Zone PID, 4Seg PID
Analog input Type/Accuracy
1point(Universal input)/±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB)
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ
RTD
PT100(IEC), JPT100(JIS), 1/100 Displayable
DCV
-10 ~ 20mV, 0 ~ 100mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach)
Analog output Type
5points(Universal output)
Output type
Control output, Retransmission output(PV, SP, MV)
SSR
18V DC(R:Min. 600Ω)
SCR
4~20mA, 0~20mA
Relay
Max. 30V DC/1A, 250V AC/1A
Digital
output		 Quantity
A:8points, O.C 4points
Specification
Max. 30V DC/1A, 250V AC/1A / O.C 24V DC 50mA less
Signal type
TS 5points, Is/Alm/S.alm/On· Off each 4points, Run/Err/Up/Soak/Down/Pte end/Hold/Heat each 1point
Digital
input		 Specification
4points(Contact capacity : Max. 12V DC, 10mA)
Function
Run/Stop, Err, Hold, Step, SP, Ptn select
Communication
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync(Master, Slave), Max. 19200bps
Power
100~240V AC, 50/60Hz, 15VA Max.

Model code

Model Additional code Contents
SP790 - □ □
Control method
 0
Normal control
1
Heating·Cooling control
Communication
 0
None
1
RS485
* OEM required for RS232C
1ManualInstruction manual(Communication)
Software manual
2CatalogueCatalogue
3DimensionDimension
4SoftwareSoftware
