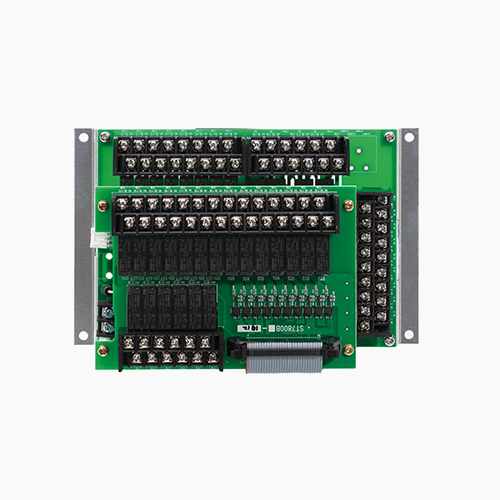

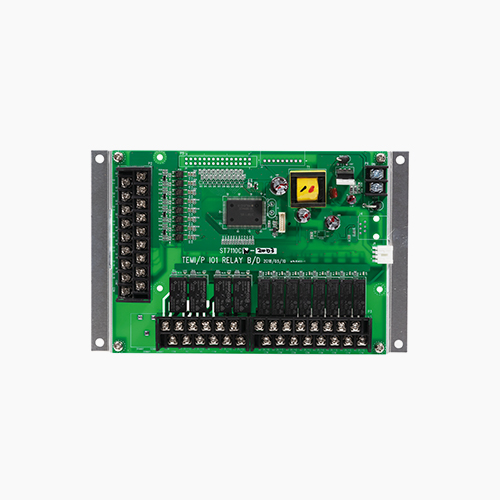

I/O1 Board

I/O1 Board

I/O2 Board

I/O2 Board

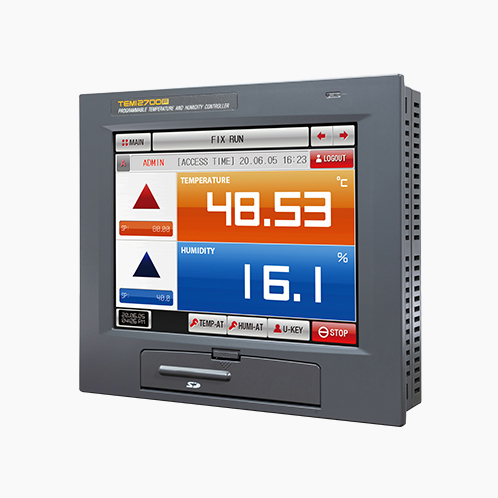

タッチタイププログラマブル温・湿度コントローラー

FDA 21 CFR Part 11 COMPLIANCE

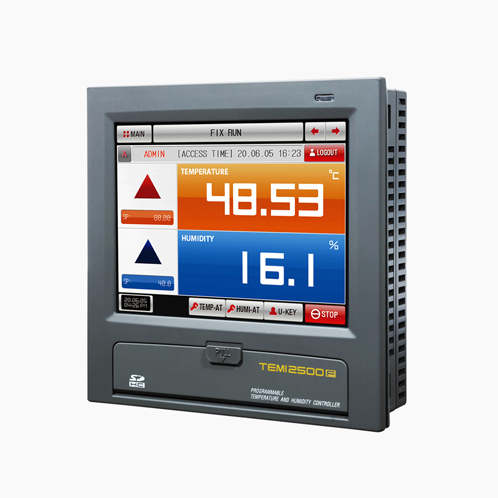

TEMI2000F SERIES

It is temperature and humidity programmable controller, supports high-definition TFT-LCD touch screen and SD card, and is equipped with FDA PART11 security function.

  • High accuracy

    Precision control with 18bit A/D convertor

    TEMP. : ±0.1% of full scale ±1 digit

    HUMI. : ±1.0% of full scale ±1digit

  • Optimizing PID group

    Precision control by 6 group of TEMP./HUMI. and 3 group of temperature only

  • Specialized controller

    As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV

  • Specialized humidity control

    Humidity control algorithm according to the equipment size implements a stable control

  • Heating·cooling control

    Heat and cooling control by equipments (Option)

製品についてお問い合わせ
  • efd078c39b3bb6beb4c92f7082e6217e_1591243585_38.png

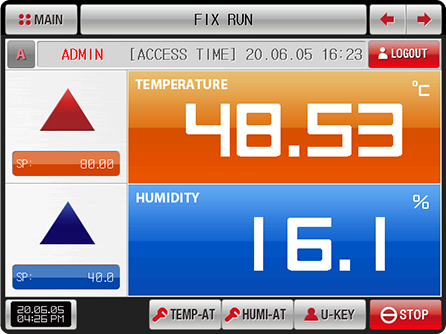

    Touch screen interface

    Easy access to setup and operate with touch screen

  • efd078c39b3bb6beb4c92f7082e6217e_1591243601_52.png

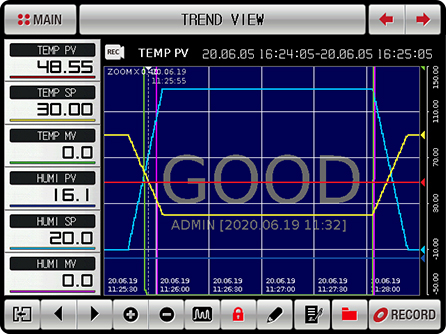

    Digital recorder function

    Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required

  • efd078c39b3bb6beb4c92f7082e6217e_1591243613_8.png

    SD memory card support

    The pattern and parameter can be up/download via SD memory card

  • efd078c39b3bb6beb4c92f7082e6217e_1591243626_6.png

    Multi-language system

    Supporting of various languages of korean, english, Chinese, Japanese and russian

  • efd078c39b3bb6beb4c92f7082e6217e_1591243638_21.png

    Powerful communication

    Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option

  • efd078c39b3bb6beb4c92f7082e6217e_1591243649_38.png

    Free PC software

    Free PC multi-monitoring software for communication and SD viewer for data management of SD data

  • efd078c39b3bb6beb4c92f7082e6217e_1591243660_43.png

    Operation time management

    Display of the operation starting time, estimated termination time and operation time up to now

  • 3f5b994428dc694ba321bcdf6a7aeaec_1592275459_65.jpg

    Access Control

    User registration and management / User Authorization / User operation control

  • 3f5b994428dc694ba321bcdf6a7aeaec_1592275468_31.jpg

    Electronic Record

    System history management / User operation history management / Building a large file system

  • 3f5b994428dc694ba321bcdf6a7aeaec_1592275472_94.jpg

    Electronic Signature

    Trend data electronic signature management / Electronic signature display / Control access to electronic signature data

  • 3f5b994428dc694ba321bcdf6a7aeaec_1592275477_51.jpg

    Audit Trail

    Track system history / User operation management / DB Access

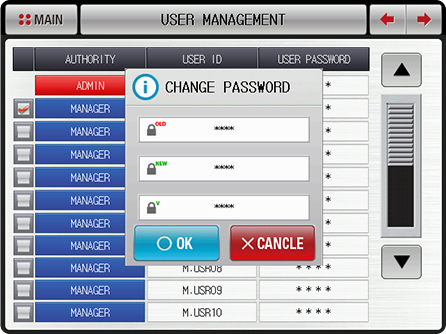

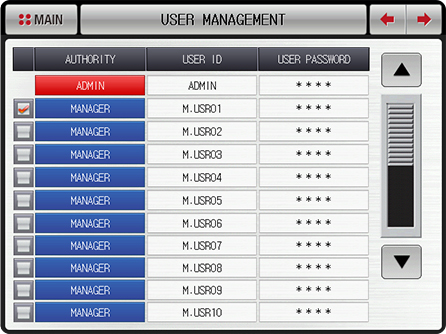

Access Control

System operation based on authenticated users(ADMIN: 1, MANAGER: 10, USER: 100).
Display user history for all user operations.

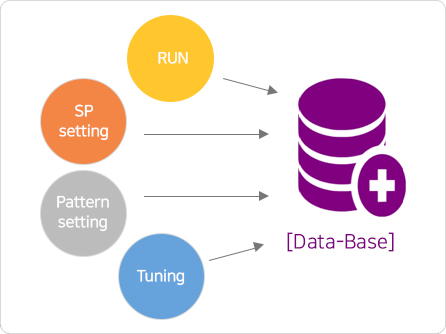

Electronic Record

Electronic document recording of system event history.
Generation of operation history data for all user operations.
Record the previous and subsequent values of the operation data for each parameter.
Embedded Data-Base operation for fast high-capacity data access.

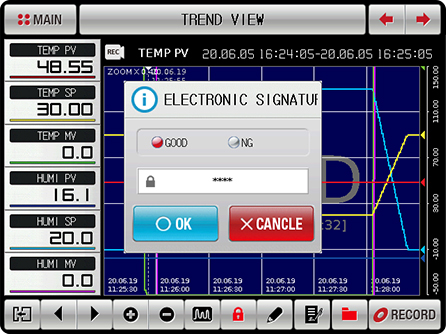

Electronic Signatures

Electronic signature for each trend data recorded by authorized users.

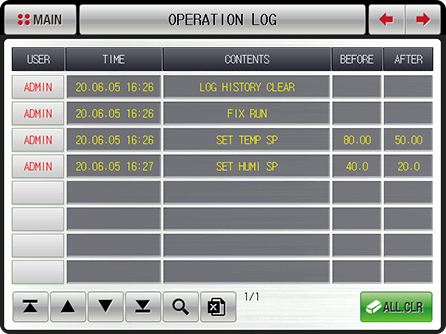

Audit Trail

Audit trail of system operation(operation)
CSV (Excel) can be converted for the output data.

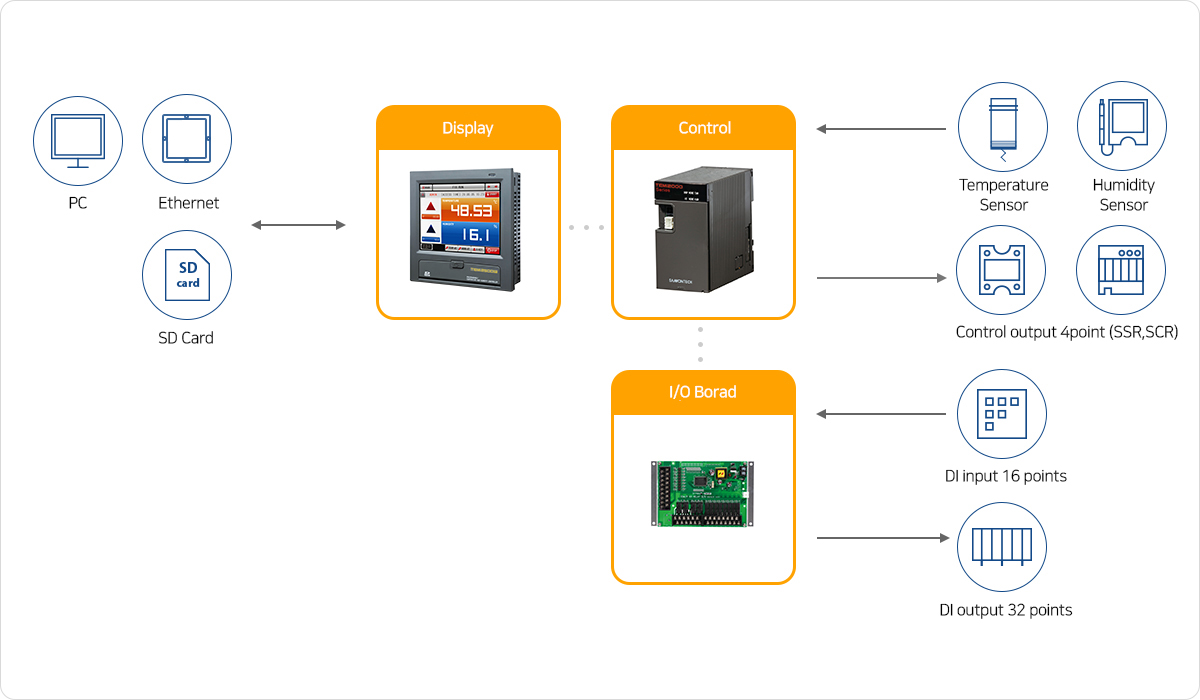

Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability

Group Item TEMI2500F TEMI2700F
Screen Display
5.7* TFT-LCD
7.5* TFT-LCD
Resolution
640(W) x 480(H)
Language
Korean / English / Chinese (Simplified, Traditional) / Japanese
User screen
16 customized user interface fod screen by user
Mount type
PANEL mount, VESA mount(MIS-D 75)
Analog input Number of point
2points(TEMP. : 1point, HUMI. : 1point)
Type
TEMP.
PT1 100Ω
-90.00 ~ 200.00℃
PT2 100Ω
-90.00 ~ 300.00℃
DCV
-1.000 ~ 2.000V (-100.0 ~ 200.00℃)
HUMI.
PT1 100Ω
-10.0 ~ 1100.00℃ (0.0 ~ 100.0%)
DCV
1.000 ~ 5.000V (0.0 ~100.0%)
Sampling time
Each temperature and humidity 250ms
Input accuracy
TEMP.
±0.1% of full scale ±1 digit
HUMI.
±1.0% of full scale ±1 digit
Bias
Each 4points piece bias for temperature and humidity
Analog output Output specification
(Max. 4points)
Voltage output(SSR) 4points
ON voltage : 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms)
Current output(SCR) 4points
4~20mA DC(Load resistance : Max. 600Ω)
Output type
Control output/Transmission output(PV, SP)
Output accuracy
±0.3% (D/A 14bits)
Digital input Contact point specification
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
Contact point function
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture)
Digital output Contact point quantity
12points base(Additional 20points by option)
4points base C-contact relay
Normal open(Max. 30V DC/1A, 250V AC/1A)
Normal close (최대 30V DC/1A, 250V AC/1A)
8points base A-contact relay
Normal open (최대 30V DC/1A, 250V AC/1A)
Additional 20points A-contact relay(Option)
Signal type
Inner signal(10points) On/Off signal(TEMP. 10points, HUMI. 5points) Logical signal(3points) Error signal(1point) User signal(1point)
Time signal(4points) Fix· Programmable end signal(2points) Dl signal(16points) Sensor open signal(2points) Ref signal(2points)
Alarm signal(8points) Up· Soak· Down signal(6points) Manual signal(12points) Fix timer signal(2points)
RUN signal(2points) Wait signal(2points) Drain signal(1point)
Program Pattern/Segment
500 Patterns/ 50,000 Segments
Segment time
Max. 999hours 59minutes 59seconds
Function
Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode
Repetition
Pattern/Segment repeat operation
PID control PID groups
9 PID groups(6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only)
PID type
Zone PID
Auxiliary functions
Changeable tuning point, PID tuning gain, Selectable HUMI. control code
Data back-up Storage media
SD/SDHC card(FAT32 Format)
Logging function
Program pattern/Parameter can be backup and restored, PV/SP can be stored.
Communication Interface
Basic : Flexible to change between RS485/RS232C by DIP switch, Max. 31 nodes. Max. 115,200 bps,
Basic : Ethernet(TCP/IP)
Protocol
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU)
Power Rated voltage
24VDC 22VA Max.
Lithium battery
For setup data retention(CR2032)

Model code

Model Additional code Contents
TEMI2 □ 0 0 F - □ □
Size
 5
5.7inch (IP65 certification)
7
7.5inch
Control method
 0
Normal control
1
Heating·Cooling control
I/O board
 0
I/O1 (DO12points, DI16points)
1
I/O1, 2 (DO32points, DI16points)
