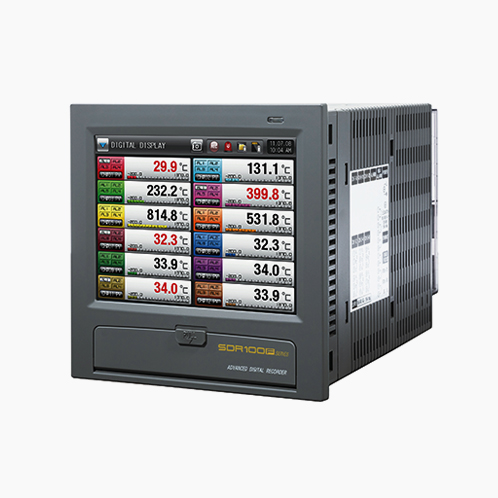

SDR100F SERIES

FDA 21 CFR Part 11 COMPLIANCE

SDR102F / SDR104F / SDR106F / SDR112F

It is a digital recorder without paper. It supports the high screen quality TFT_LCD touch screen and SD card. It is a product with rapid graph searching function.

  • Brightness and clarity

    640×480 TFT-LCD, 256K Color

  • Touch screen display

    Touch screen interface

    Canned message on recording graph

    Allowable screen capturing

  • Fast record data search

    Apply the FSA.(Fast Searching Algorithm)

    About 1 sec. in researching 1G byte data

    Identifiable previous data during recording

    Previous graph search during recording

  • Memory Size

    Internal memory : 4G byte (Permanent)
    (Can store for about 6 years based on 1 sec / 12 channels)

    Exterior memory : Free 4G byte SD

  • Convenient message function

    Input & display messages on a graph

    Easy short cut message function

    Auto input : Events and other messages

    Message check in saved graphs

  • Automatic Data Recovery Function

    Supports automatic recovery of missing data when the card is removed and
    re-inserted while saving the SD card
    (Internal memory / SD card simultaneous storage)

Product Inquiry

FDA 21 CFR PART 11 COMPLIANCE





Zoom in/out of data

Data can be analyzed by enlarging or reducing the data


Data Management

Available for sustainable storage with one file
Support for simultaneous storage, transmission and deletion of Internal/External(SD) memory
Available for parameter back up via external (SD) memory


History save function

Max. each 100 Errors, Alarms and Events histories
Can be saves as TEXT, CSV or PDF


Exploring data

Drag the screen to move freely and explore data


Operation/Application programs

Operational programs supports serial, ethernet
Save as various file formats (Excel, Text, etc.)

GroupItemSDR102FSDR104FSDR106FSDR112F
Screen Display
5.7" TFT-LCD(640(W) X 480(H))
Display type
Trend, Bar, Digital, Event, History of Error, Information(Alarm, Message, Memory capacity)
Language
Korean, English, Chinese (Traditional, Simplified), Japanese
Input
section		 Number of channel
2 Channel
4 Channel
6 Channel
12 Channel
Input types
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel II, C
RTD
Pt100(IEC), Jpt100(JIS), 1/100 Displayable
DCV
-5~10V, -10~20V, -1~2V, 0~2V, 0~5V, 1~5V, 0~10V, 0~20V, -10~20mV , -50~100mV, 0~20mV, 0~100mV(Scale : -30000 ~ 30000)
DCV unit
C, F, BLANK, %, Pa, kPa, %RH, mV, V, Ω, mmHg, kgF
TC/RTD unit
C, F
Measurement interval
500ms
Input accuracy
±0.1% of full scale ±1 digit
Alarm
function		 Number of alarm
Setting of maximum 4 alarms per a channel
Alarm type
High/Low of PV, In/Beyond of PV range, Above of PV rise rate, Below of PV rise rate
Above/Below deviation among channels. sensor open
Alarm output
(Option)		 Contact point quantity
A contact point Relay 6points, 12points
Normal open(Max. 30VDC 1A/250VAC 1A)
Remote input
(Option)		 Contact point quantity
2points(Contact point Volume: Maximum 12VDC, 10mA)
Contact point function
DI errors and cycle recording, Setting the DI detection leg-time
Product size and weight Size
144(W) X 144(H) X 188(D) mm
Weight
1.1Kg
1.2Kg
1.3Kg
Case material
PC + ABS
Data storage
function		 Internal memory
Flash memory(4GB)/Non-volatile
Exterior memory
SD/SDHC card(FAT 32 format)
Save method
Save at the Interior/Exterior(SD card) memory
Data type
Recorded data & Message
Data format
Binary format
Communication Interface
Basic RS232C/485 selection, Communication speed : Max. 115,200bps , Ethernet(TCP/IP)
Protocol
PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU)
Power Rated voltage
100 ~ 240V AC, 50/60 Hz
Consumed electric power
15VA Max.

Model code

Model Additional code Contents
SDR1 □ □ E - N □ □ / □
Channel
 02
2 Channel
04
4 Channel
06
6 Channel
12
12 Channel
Alarm Output
 N
None
A1
Relay 6Points
A2
Relay 12Points
Remote Input
 N
None
R1
DI 2Points
Others
 M1
Computation Function
P1
Portable Type
