ST510E

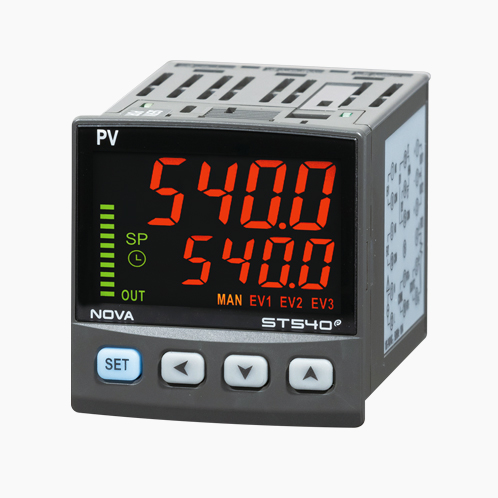

ST540E

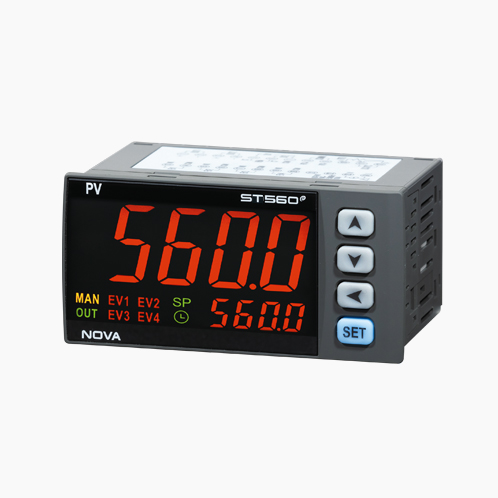

ST560E

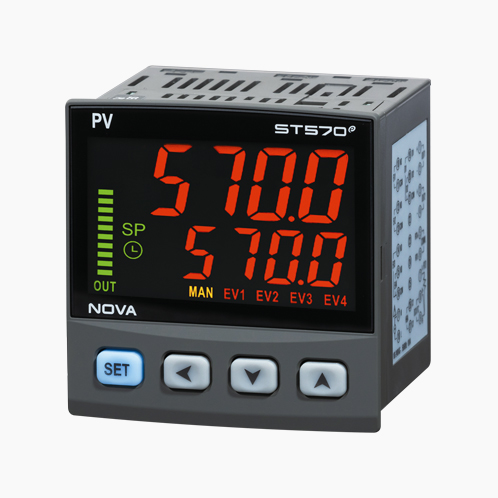

ST570E

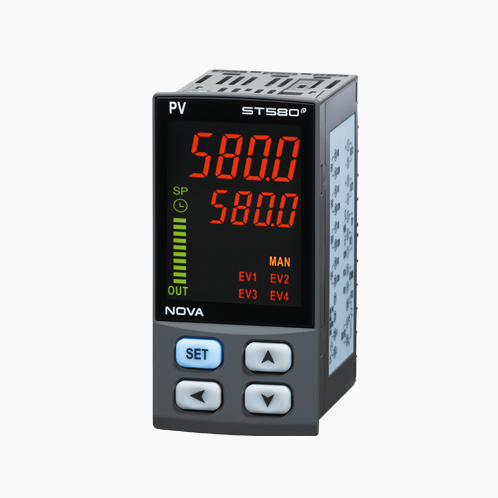

ST580E

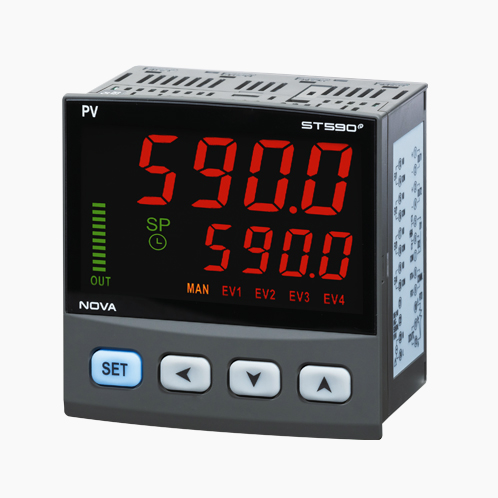

ST590E
NOVA500 ENHANCE
High accuracy general temperature controller
NOVA500e ST SERIES
It is an enhance model of the NOVA500 series, and is a high accuracy universal temperature controller.
-
High Precision control with 18bit A/D convertor ±0.1% of full scale ±1 digit
Auto/Manual output support
Reserve function of Run/End
Run/Stop function
Run/Stop by external input, SP selectable
Power mode function(Stop, Cold, Hot)
Transmission output of the basic 2points (PV, SP, MV)
Alarm output basic 2points(Max.4points)
Display of running status in auxiliary output
Input piece bias function(Max. 4points)
Various communication protocol support(Modbus and etc.)
Heater break alarm support
Various auxiliary output support (IS, Alm, Tmr, Run etc.)
Compact Size
Compact and space-saving design.
Parameter Management
Simple Parameter setting and transition using PC S/W.
Support timer signal output
When the trigger (DI1, DI2, RUN) action, the internal timer action can reduce the external device (timer) used to make wiring simple.
Built-In Reserve function of RUN and STOP(ST Series)
Reserve function of Run is to start control temperature after setting time(S-TM).
Reserve function of End is to stop control output when after pass the setting time(P-TM).
Heating·Cooling control
Position proportional control
Multi-connect of power and communication

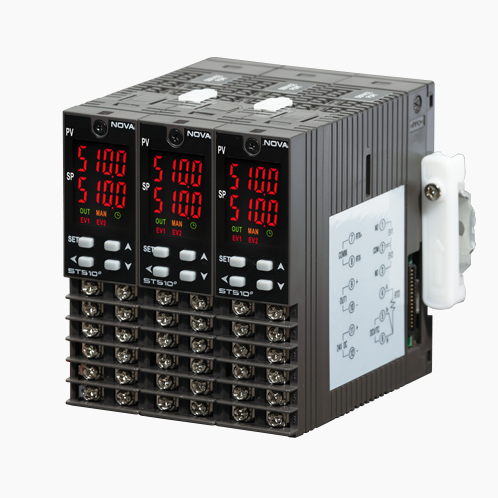

If It use a rail-type controller, It can multi-connection of the power and communications to the contact instrumentation. Also It can simplify the wiring.
Programless Communication
Communicating with PLC without program, PLC is a communication port can be connected to up to 31 units.
Powerful Sync communication
As synchronizing Slave controllers with Master setting point, the controllers operate same program as NOVA500 series Master controller. Low price controllers can operate same as programmable controller-Saving prime cost.
| Group | ST510E | ST540E | ST560E | ST570E | ST580E | ST590E | ||
|---|---|---|---|---|---|---|---|---|
| Size | 28(W)×100(H)×100(L) |
48(W)×48(H)×79(L) |
96(W)×48(H)×68(L) |
72(W)×72(H)×68(L) |
48(W)×96(H)×68(L) |
96(W)×96(H)×68(L) |
||
| PV/SP display | Each 4 digits |
Each 5 digits |
||||||
| Sampling time | 250ms |
|||||||
| Control mode | Normal control/Heating· Cooling control/Position proportional control |
|||||||
| PID control | 4 PID groups(3 Zone PID groups + 1 Deviation PID group |
|||||||
| Temperature setting(SP) | SP 1 ~ SP 4 |
|||||||
| Analog input | Type/Accuracy | 1point(Universal input)/±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
||||||
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
|||||||
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
|||||||
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
|||||||
| Analog output | Type | 3points(Universal output) |
5points(Universal output) |
6points(Universal output) |
||||
| Output type | Control output, retransmission output(PV, SP, MV) or loop power supply |
|||||||
| SSR | 24V DC(Resistance: Min. 600Ω) |
12V DC(Resistance: Min. 600Ω) |
||||||
| SCR | 4 ~ 20mA DC, 0 ~ 20mA DC(Option)(Resistance : Max. 500Ω)/Accuracy: ±0.1% |
|||||||
| Relay | Max. 30V DC/1A, 250V AC/1A |
|||||||
| Relay output |
Quantity |
A : 1points + 1point
|
A : 2points + 1point
|
A : 2points + 2point
|
||||
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
|||||||
| Signal type |
Is 2points, Alm 4points, Run 1point, Heat 1point, Cool 1point, Timer 2points, Hba 1point, Lba 1point
|
|||||||
| Digital input |
Specification |
-
|
2points(Contact point capacity : Max. 12V DC, 10mA
|
|||||
| Function |
-
|
Run/Stop, SP select, Timer operation
|
||||||
| Heater break alarm(HBA) | 50A/800:1, 1000:1 CT |
|||||||
| Communication | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync(Master, Slave), PLC COMM., Max. 115,200bps |
|||||||
| Power |
24V DC, 2.7VA Max.
|
100~240V AC, 50/60Hz, 10VA Max. |
||||||
Model code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| ST5 | □ | 0 | E | - | □ | □ | / | □ | ||
| Size |
9 | 96 * 96 |
||||||||
| 8 | 48 * 96 |
|||||||||
| 7 | 72 * 72 |
|||||||||
| 6 | 96 * 48 |
|||||||||
| 4 | 48 * 48 |
|||||||||
| 1 | 28*100 (Rail type) |
|||||||||
| Control method |
0 | Normal control |
||||||||
| 1 | Heating·Cooling control |
|||||||||
| 2 | Position proportional control |
|||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
EV | RELAY 2points |
Att.1 |
|||||||
| RS | RS485 |
|||||||||
| DI | DI 2points |
Att.2 |
||||||||
| HBA | Heater break alarm 1point |
|||||||||
| A2 | 0~20mA |
|||||||||
| V2 | 0~10V |
|||||||||
| V3 | 0~5V |
|||||||||
| V4 | 1~5V |
|||||||||
| MT | Multi connection (510 only) |
|||||||||
Att.1) 510, 540E RELAY 1point |
||||||||||
Att.2) DI/HBA is unavailable to mix (570E is available to mix) |
||||||||||
