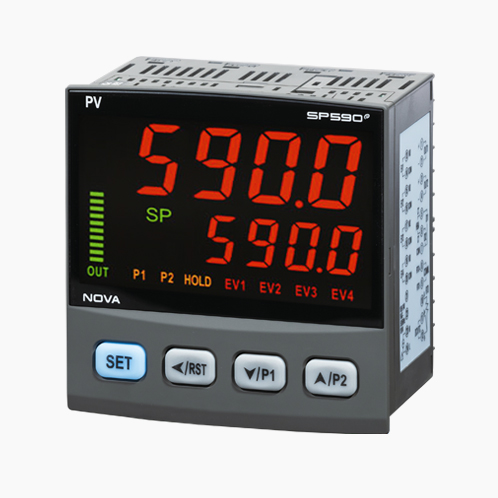

SP590E

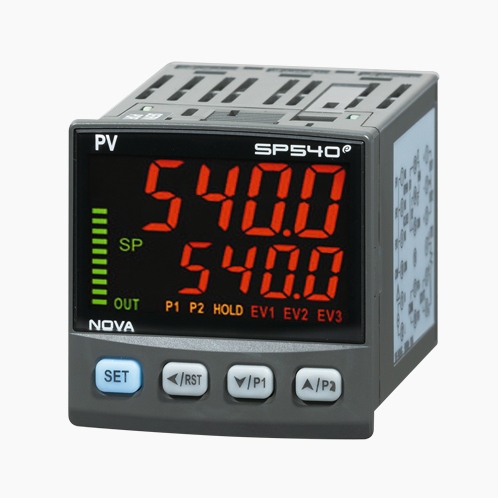

SP540E

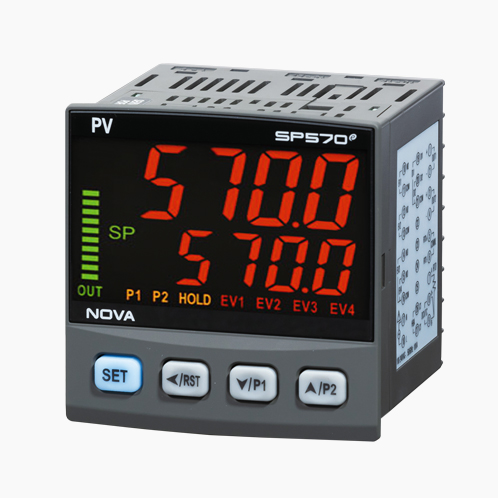

SP570E

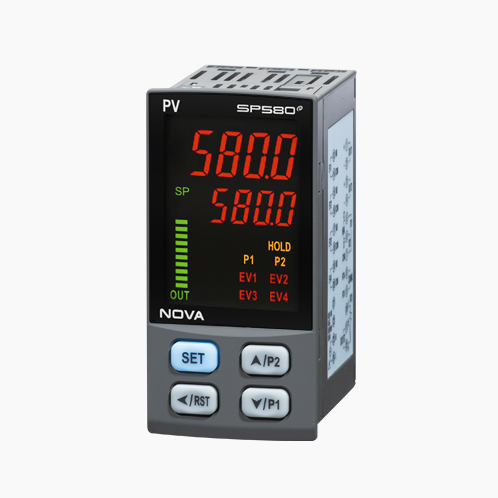

SP580E
NOVA500 ENHANCE
2pattern programmable general temperature controller
NOVA500e SP SERIES
This is an enhance model of the NOVA500 series, and is a high accuracy universal temperature controller capable of program operation.
-
High Precision control with 18bit A/D convertor ±0.1% of full scale ±1 digit
2 Patterns/30 Segments
Alarm output basic 2points(Max.4points)
By external contact input, RUN/STOP, HOLD, STEP, program selection.
Power mode function (STOP, COLD, HOT)
Transmission output of the basic 2points (PV, SP, MV)
Display of running status in auxiliary output
Input piece bias function(Max. 4points)
Various communication protocol support(Modbus and etc)
Various auxiliary output support (IS, TS, PT end, UP, SOAK, DOWN and etc.)
Heater break alarm support
Compact Size
Compact and space-saving design.
Parameter Management
Simple Parameter setting and transition using PC S/W.
Support timer signal output
When the trigger (DI1, DI2, RUN) action, the internal timer action can reduce the external device (timer) used to make wiring simple.
Programless Communication
Communicating with PLC without program, PLC is a communication port can be connected to up to 31 units.
Powerful Sync communication
As synchronizing Slave controllers with Master setting point, the controllers operate same program as NOVA500 series Master controller. Low price controllers can operate same as programmable controller-Saving prime cost.
| Group | SP540E | SP570E | SP580E | SP590E | |
|---|---|---|---|---|---|
| Size | 48(W)×48(H)×79(L) |
72(W)×72(H)×68(L) |
48(W)×96(H)×68(L) |
96(W)×96(H)×68(L) |
|
| PV/SP display | Each 5 digits |
||||
| Sampling time | 250ms |
||||
| Control mode | Normal control/Position proportional control |
||||
| Operation mode | Program |
||||
| Pattern/Segments | 2 Patterns/30 Segments |
||||
| PID control | 4 PID groups(3 Zone PID groups + 1 Deviation PID group) |
||||
| Analog input | Type/Accuracy | 1point(Universal input)/±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
|||
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
||||
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
||||
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
||||
| Analog output | Type | 5points(Universal output) |
6points(Universal output) |
||
| Output Type | Control output, retransmission output(PV, SP, MV) or loop power supply |
||||
| SSR | 12V DC(Resistance: Min. 600Ω) |
||||
| SCR | 4 ~ 20mA DC, 0 ~ 20mA DC(Option)(Resistance : Max. 500Ω)/Accuracy: ±0.1% |
||||
| Relay | Max. 30V DC/1A, 250V AC/1A |
||||
| Relay output |
Quantity |
A : 2points + 1point
|
A : 2points + 2points
|
||
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
||||
| Signal type |
Is 2points, Alm 4points, Ts/Run/Pt end/Up/Soak /Down/Heat/Hba/Lba each 1point, Timer 2points
|
||||
| Digital input |
Specification |
2points(Contact point capacity : Max. 12V DC, 10mA)
|
|||
| Function |
Run/Stop, Hold, Step, Ptn Select, Timer Operation
|
||||
| Heater break alarm(HBA) | 50A/800:1, 1000:1 CT |
||||
| Communication | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), Sync Master, PLC COMM., Max. 115,200bps |
||||
| Power | 100~240V AC, 50/60Hz, 10VA Max. |
||||
Model Code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SP5 | □ | 0 | E | - | □ | □ | / | □ | ||
| Size |
9 | 96 * 96 |
||||||||
| 8 | 48 * 96 |
|||||||||
| 7 | 72 * 72 |
|||||||||
| 4 | 48 * 48 |
|||||||||
| Control method |
0 | Normal control |
||||||||
| 2 | Position proportional control |
|||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
EV | RELAY 2points |
Att.1 |
|||||||
| RS | RS485 |
|||||||||
| DI | DI 2points |
Att.2 |
||||||||
| HBA | Heater break alarm 1point |
|||||||||
| A2 | 0~20mA |
|||||||||
| V2 | 0~10V |
|||||||||
| V3 | 0~5V |
|||||||||
| V4 | 1~5V |
|||||||||
Att.1) 540E RELAY 1point |
||||||||||
Att.2) DI/HBA is unavailable to mix (570E is available to mix) |
||||||||||
