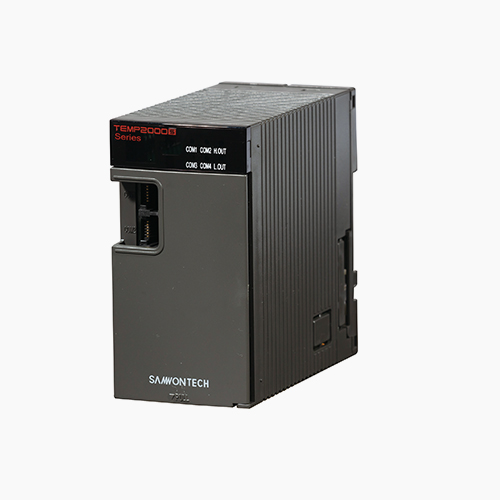

CONTROL

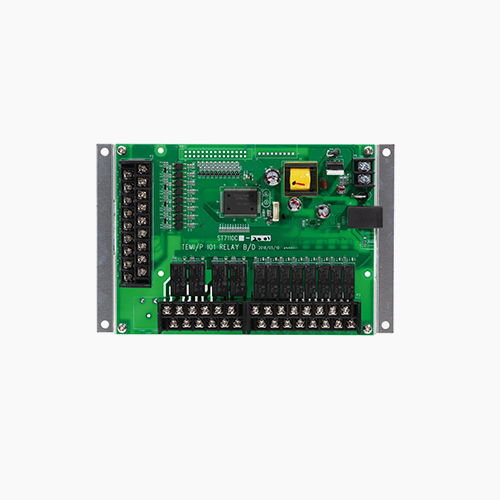

I/O1 Board

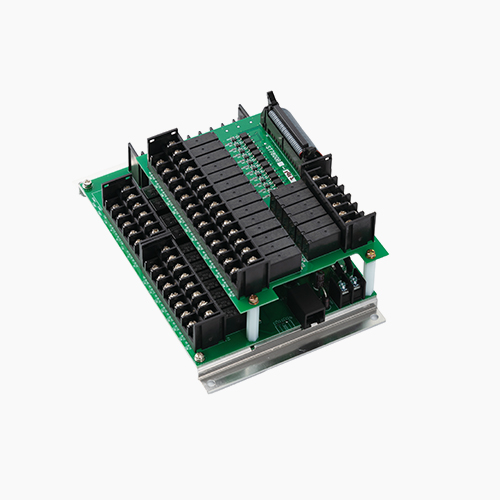

I/O2 Board

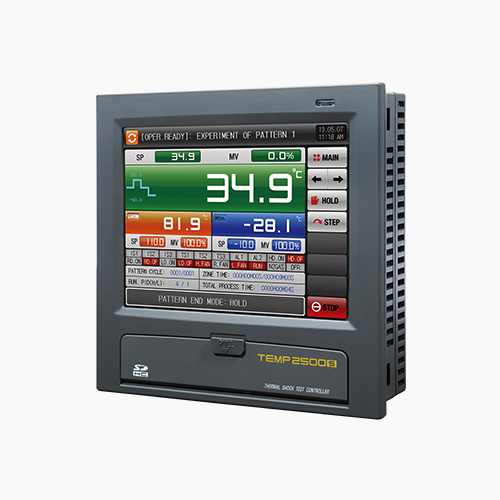

TEMP2500S

TEMP2500S

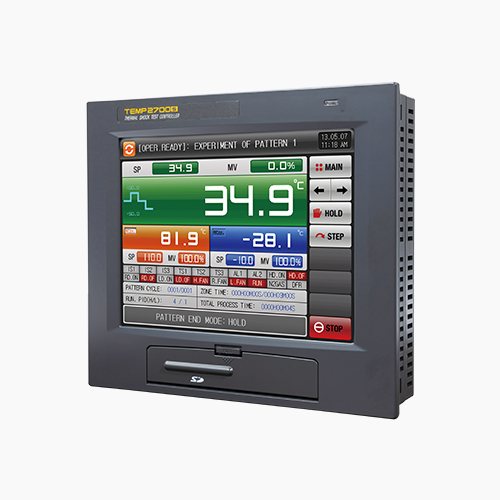

TEMP2700S

TEMP2700S

CONTROL

CONTROL

I/O1 Board

I/O1 Board

I/O2 Board

I/O2 Board

Touch type programmable thermal shock test controller

TEMP2000S SERIES

As a thermal shock test controller, it supports high-quality TFT-LCD touch screen and recording function. This product supports the damper & elevator type.

  • Control method suitable for the system

    Damper type, elevator type

  • Various types of pattern control

    Provides various types of patterns in high temperature room, room temperature room, and low temperature room.High accuracy

  • Precision control with 18bit A/D convertor

    ±0.1% of full scale ±1 digit

  • Variety of control PIDs

    ZONE PID 3 and deviation PID 1 are applied for fast and stable control of sudden temperature rise and fall

Product Inquiry
  • efd078c39b3bb6beb4c92f7082e6217e_1591243585_38.png

    Touch screen interface

    Easy access to setup and operate with touch screen

  • efd078c39b3bb6beb4c92f7082e6217e_1591243601_52.png

    Digital graphic recording function

    Real-time monitoring & Data manage operation status of present value(Zone of experiment, High, Low) through full digital graph

  • efd078c39b3bb6beb4c92f7082e6217e_1591243613_8.png

    SD memory card support

    The pattern and parameter can be up/download via SD memory card

  • efd078c39b3bb6beb4c92f7082e6217e_1591243626_6.png

    Multi-language system

    Supporting of various languages of korean, english, Chinese, Japanese and russian

  • 016ed9dbaececfe4d8001979b3caac9d_1593691126_36.jpg

    Standby type select

    In case operation starts, select Standby-act(Pre-Heating, Pre-Cooling) & select conditions for standby-act cancel

  • efd078c39b3bb6beb4c92f7082e6217e_1591243638_21.png

    Powerful communication

    Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option

  • 016ed9dbaececfe4d8001979b3caac9d_1593691310_66.jpg

    Various defrosting methods

    Heater1 type(Defrosting during pre-set time), Hot-gas type, Manual type and heater2 type(Present value = Defrosting for set time from set value)

  • efd078c39b3bb6beb4c92f7082e6217e_1591243649_38.png

    Free PC software

    Free PC multi-monitoring software for communication and SD viewer for data management of SD data

Supporting SD memory card

  • 842e62f69929821e5b701f2e7b883f4f_1594273311_16.jpg

    Selectable Initial screen

    User can choose appropriate initial screen

  • 842e62f69929821e5b701f2e7b883f4f_1594273316_27.jpg

    Editable Error Screen

    Self-designed picture can be used

  • 842e62f69929821e5b701f2e7b883f4f_1594273324_33.jpg

    Electronic Album

    Company and product profiles can be displayed

  • 842e62f69929821e5b701f2e7b883f4f_1594273331_45.jpg

    Data recording with SD card

    Data acquisition of process value.
    Up/Download parameter and pattern data.

Available for speedy and stable controlling on the rapid ascending/descending section


Available for preventing the initial hunting due to the lack of freezing capacity in low temperature room with adoption of low temp. room deviation hysteresis


Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability

Group Item TEMP2500S TEMP2700S
Screen Display
5.7" TFT-LCD
7.5" TFT-LCD
Resolution
640(W) × 480(H)
Language
English, Korean, Chinese/English, Korean, Japanese
User screen
Change of initial screen, Electronic album function
Mount type
PANEL mount, VESA mount(MIS-D 75)
Analog input Input quantity
3points(High temperature room, Low temperature room and laboratory room/Universal input)
Sensor type
TC
K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C
Sampling time
500ms
Input accuracy
±0.1% of full scale ±1 digit(A/D 18bits)
Analog output Output specification
(Max. 4points)
Voltage output(SSR) 4points
ON voltage 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms)
Current output(SCR) 4points
4~20mA DC(Load resistor : Max. 600Ω)
Output type
Control output /Transmission output(High temperature room PV, Low temperature room PV and laboratory room PV)
Output accuracy
±0.3%(D/A 14bits)
Digital input Contact point specification
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
Contact point function
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture),
damper sensing for high temp. room/Room temp. room/low temp. room
Digital output Contact point quantity
Basic 12points(8points of A contact point relay + 4points of C contact point relay), Option add function(20point of A contact point relay)
Normal open(Max. 30V DC/1A, 250V AC/1A), Normal close(Max. 30V DC/1A, 250V AC/1A)
Signal type
Inner signal(8points) Time signal(4points) Alarm signal(4points) Ref signal(2points) Sensor open signal(3points)
DI signal(16points) Manual signal(12points) Run signal(1point) Sol valve signal(1point) Run end signal(1point)
Logical signal(3points) Error signal(1point) Wait signal(2points) User signal(1points) N2 gas signal(1point)
Fan signal(3points) Damper signal(6points) Defrosting signal(1point) Experiment signal(3points)
Program Patterns
120 patterns
Pattern type
(6 types)
① High temp. → Low temp./② Low temp. → High temp./③ Room temp. → High temp. → Room temp. → Low temp./④ Room temp. → Low temp.
→ Room temp. → High temp./⑤ High temp. → Room temp. → Low temp. → Room temp./⑥ Low temp. → Room temp. → High temp. → Room temp.
Repetition/Segment time
Max. 9999 times/999hours 59minutes 59seconds
Function
Wait, Pattern name, Power stop mode, PT end mode
Operation method Operation specification
Damper, Elevator type
Defrosting method
Heater, Hot gas, Manual defrosting
PID control PID groups
4 PID groups(3 Zone PID groups + 1 Deviation PID group), *In case of applying the PID deviation, the Devation value of the high and low temp. room are applied separately
Data back-up Storage media
SD/SDHC card(FAT32 format)
Logging function
Program pattern/Backup and recovery of parameter set data, Available for saving the indicated setting value for laboratory, High temperature room and low temperature room
Communication Interface
Basic : Flexible to change between RS485/RS232C by DIP switch, Max. 31 nodes. Max. 115,200 bps,
Option : Ethernet(TCP/IP) *In case of selection of ethernet, RS232C/485 is not available
Power Rated voltage
24V DC 22VA Max.
Lithium battery
For setup data retention(CR2032)

Model code

Model Additional code Contents
TEMP2 □ 0 0 S - 0 □ / □ / □
Size
 5
5.7inch (IP65 certification)
7
7.5inch
I/O board
 0
I/O1 (DO12points, DI16points)
1
I/O1, 2 (DO32points, DI16points)
SD card
 SD
SD card(ST'D)
Ethernet communication
 -
None
CE
Ethernet(TCP/IP)
1ManualInstruction manual
Communication manual
SIMS Manual
PME Manual
BitEditor Manual
2CatalogueCatalogue
3DimensionDimension
4SoftwareSIMS - Integrated communication software
PME - Integrated parameter editor software
BitEditor - Image editor software
5Executable fileSIMS, PME Additional files
