Economic touch type programmable temperature and humidity controller
TEMI1000 SERIES

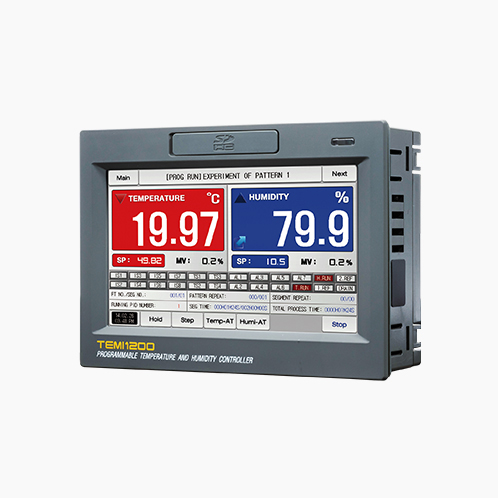

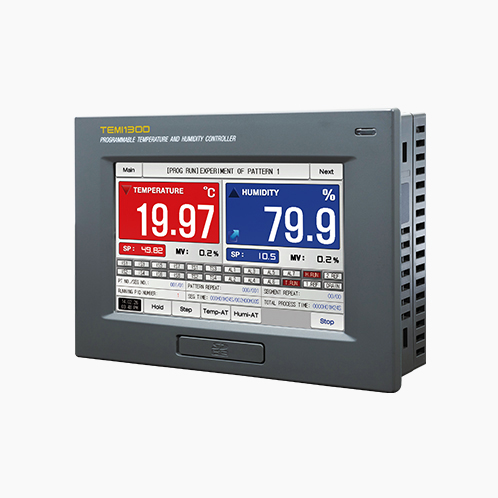

It is temperature and humidity programmable controller, It is an economical product that supports high-definition TFT-LCD touch screen and recording function.
-
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
-
Optimizing PID group
Precision control by 6 group of TEMP./HUMI. and 3 group of temperature only
-
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
-
Specialized humidity control
Humidity control algorithm according to the equipment size implements a stable control
-

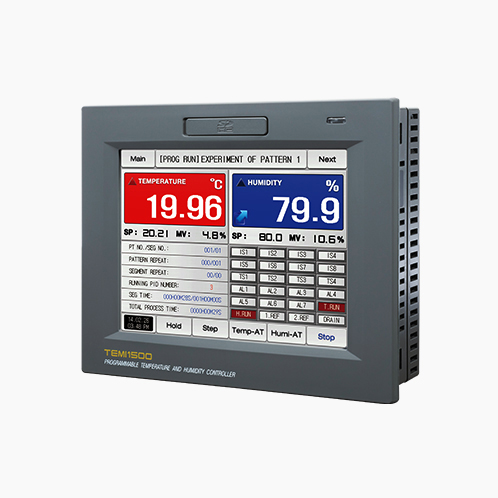

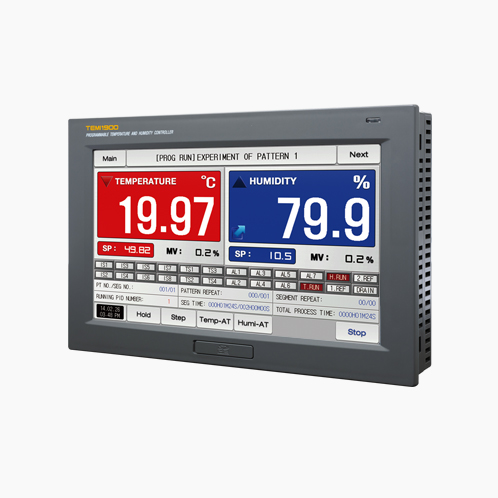

Touch screen interface
Easy access to setup and operate with touch screen
-
Digital recorder function
Real-time monitoring displays as trend graph and easy data acquisitions of PV and SP No additional recorder required
-
SD memory card support
The pattern and parameter can be up/download via SD memory card
-
Multi-language system
Supporting of various languages of korean, english, Chinese, Japanese and russian
-
Powerful communication
Basic include RS232C/485 serial communication (Communication speed 115,200bps) Ethernet support option
-
Free PC software
Free PC multi-monitoring software for communication and SD viewer for data management of SD data
-
Operation time management
Display of the operation starting time, estimated termination time and operation time up to now
Supporting SD memory card
-
Editable Error Screen
Self-designed picture can be used
-
Data recording with SD card
Data acquisition of process value.
Up/Download parameter and pattern data.

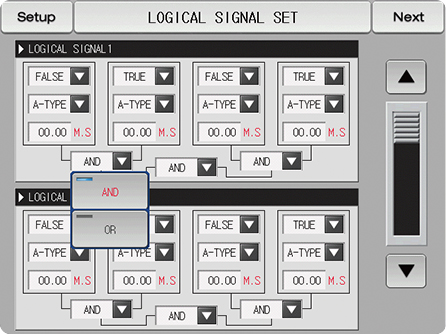

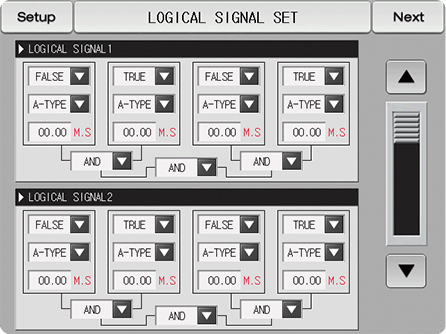

Logical signal set
The combination of the various signals is possible and logical output is possible(AND, OR, A/B contact, Timer operation possible)

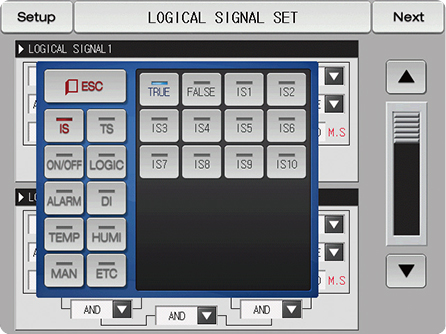

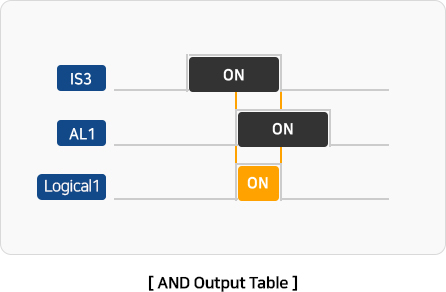

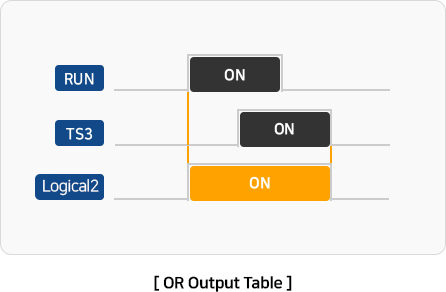

An example of the Logical signal behavior

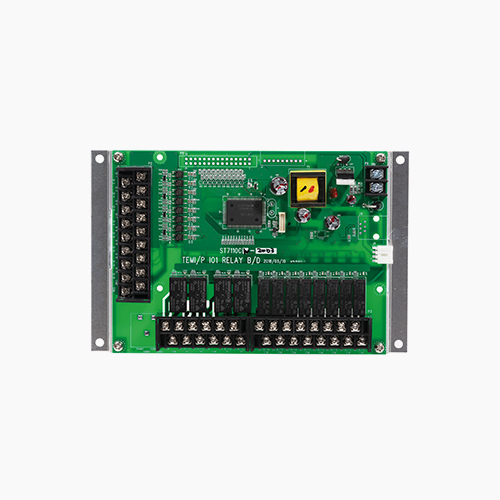

Separated hardware

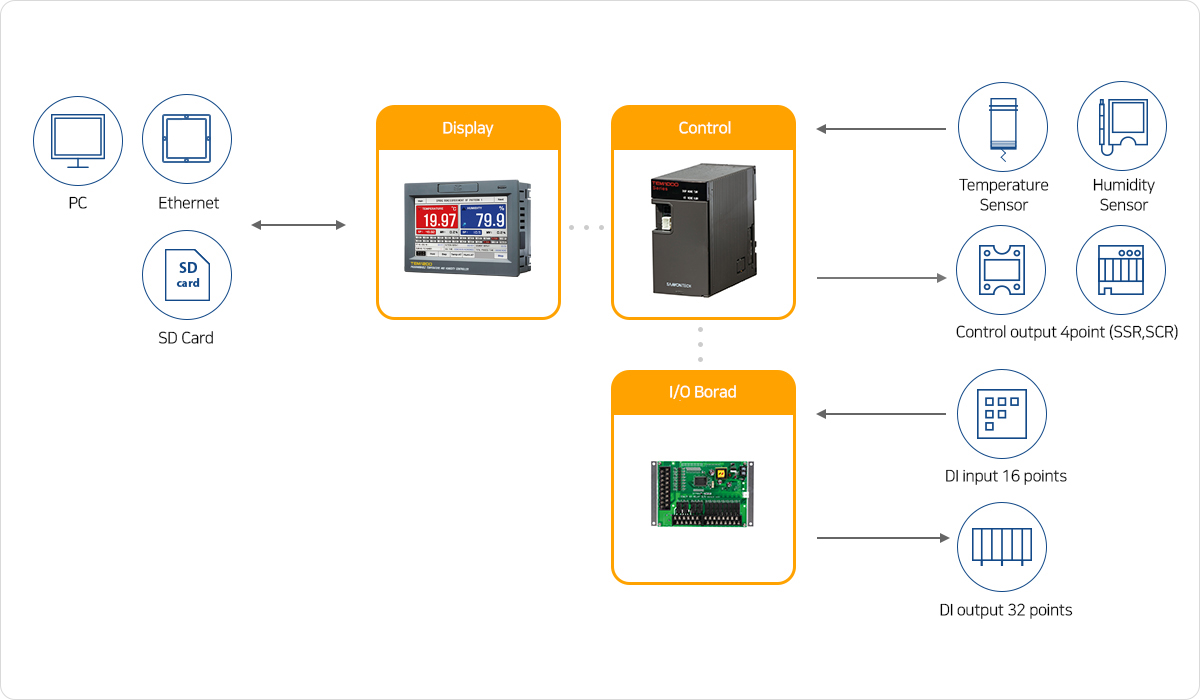

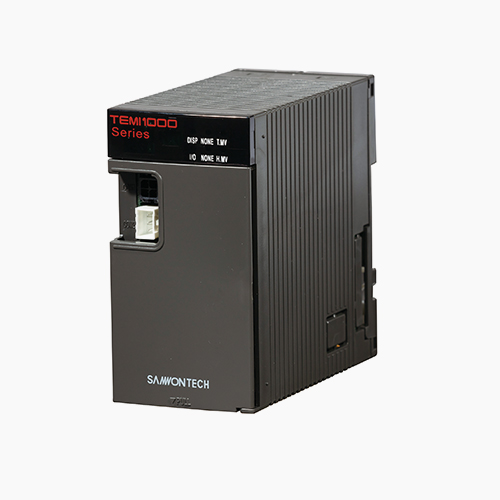

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Various system configurations and work ability
| Group | Items | TEMI1200 | TEMI1300 | TEMI1500 | TEMI1900 |
|---|---|---|---|---|---|
| Screen | Display | 4.3″ Wide TFT-LCD |
5.0″ Wide TFT-LCD |
5.6″ TFT-LCD |
9.0″ Wide TFT-LCD |
| Resolution | 800(W) × 480(H) |
800(W) × 480(H) |
640(W) × 480(H) |
800(W) × 480(H) |
|
| Language | Korean, English, Japanese, Chinese |
||||
| Mount type | PANEL mount, VESA mount(MIS-D 75) |
- | |||
| Analog input | Number of point | 2points(Temperature : 1point, Humidity : 1point) |
|||
| Type | TEMP. |
PT1 100Ω |
-90.00 ~ 200.00℃ |
||
PT2 100Ω |
-100.00 ~ 300.00℃ |
||||
DCV |
-1.000 ~ 2.000V (-100.0 ~ 200.00℃) |
||||
HUMI. |
PT1 100Ω |
-10.0 ~ 110.0℃ (0.0 ~ 100.0%) |
|||
DCV |
1.000 ~ 5.000V (0.0 ~100.0%) |
||||
| Sampling time | Each temperature and humidity 250ms |
||||
| Input accuracy | TEMP. |
±0.1% of full scale ±1 digit(A/D 18bits) |
|||
HUMI. |
±1.0% of full scale ±1 digit(A/D 18bits) |
||||
| Bias | Each 4points piece and full bias for temperature and humidity |
||||
| Display unit | TEMP. |
˚C |
|||
HUMI. |
% |
||||
| Analog output | Output specification (Max. 4points) |
Voltage output(SSR) 4points |
ON voltage : 24V DC(Load resistor : Min. 600Ω/Pulse width : Min. 5ms) |
||
Current output(SCR) 4points |
4~20mA DC(Load resistor : Max. 600Ω) |
||||
| Output type | Control output(TEMP., HUMI.)/Transmission output(PV, SP) |
||||
| Output accuracy | ±0.3% (D/A 14bits) |
||||
| Digital input | Contact point specification |
Basic 16points(Contact point capacity : Max. 12V DC, 10mA) Selection of operation for A or B point
|
|||
| Contact point function |
Run/Stop/Hold/Step, selectable run patterns, set DI detect delay time, select DI error monitor(text or picture)
|
||||
| Digital output | Contact point quantity | 12points base(Additional 20points by option) |
|||

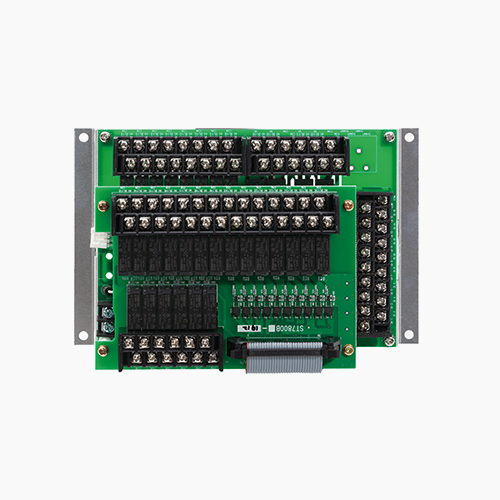

I/O1 |
A-contact : 8points Relay / C-contact : 4points Relay |
A-contact |
Normal open(Max. 30V DC/1A, 250V AC/1A) |
||
I/01,2 | I/O1 + Additional 20points A-contact relay |
C-contact | Normal open(Max. 30V DC/1A, 250V AC/1A) |
||

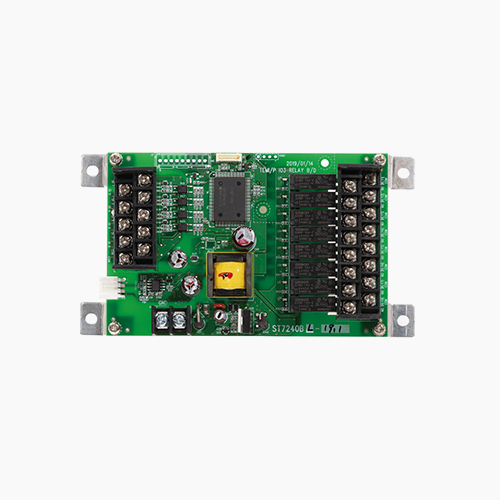

I/03 |
A-contact : 8points Relay |
Normal close(Max. 30V DC/1A, 250V AC/1A) |
|||
| Signal type | Inner signal(10points) On/Off signal(TEMP.:10points, HUMI.:5points) Logical signal(8points) Error signal(1point) User signal(1point) |
||||
Time signal(4points) Fix· Programmable end signal(2points) DI signal(16points) Sensor open signal(2points) Ref signal(2points) |
|||||
Alarm signal(8points) Up· Soak· Down signal(6points) Manual signal(12points) Fix timer signal(2points) |
|||||
Run signal(2points) Wait signal(2points) Drain signal(1point) |
|||||
| Program | Pattern/Segment | 120 Patterns/1200 Segments |
|||
| Segment time | Max. 999hours 59minutes 59seconds |
||||
| Function | Up/Down slope rate, Wait, Operating start code, Pattern name, Power stop mode, PT end mode |
||||
| Repetition | Pattern/Segment repeat operation |
||||
| PID control | PID Groups | 9 PID groups(6 PID groups for TEMP.· HUMI. + 3 PID groups for TEMP. only) |
|||
| PID type | Zone PID |
||||
| Auxiliary functions | Changeable tuning point, PID tuning gain, Selectable HUMI. control code |
||||
| Data back-up | Storage media | Internal memory(64MB) SD/SDHC card(FAT32 format) |
|||
| Logging function | Program pattern/Parameter can be backup and restored, PV/SP can be stored. (You can use the SD card, data backup and data transfer of internal memory can be) |
||||
| Communication | Interface | Basic : Flexible to change between RS485/RS232C by DIP switch, Max. 31 nodes. Max. 115,200 bps |
|||
Option : Ethernet(TCP/IP) *In case of selection of ethernet, RS232C/485 is not available |
|||||
| Protocol | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU) |
||||
| Power | Rated voltage | 24VDC 22VA Max. |
|||
| Lithium battery | For setup data retention(CR2032) |
||||
Model code
| Model | Additional code | Contents | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TEMI1 | □ | 0 | 0 | - | 0 | □ | / | □ | / | □ | |
| Size |
2 | 4.3inch wide |
|||||||||
| 3 | 5inch wide |
||||||||||
| 5 | 5.6inch |
||||||||||
| 9 | 9inch wide |
||||||||||
I/O board |
0 | I/O1 (DO12points, DI16points) |
|||||||||
| 1 | I/O1, 2 (DO32points, DI16points) |
||||||||||
| 2 | I/O3 (DO8points, DI8points) |
||||||||||
SD card |
N | None |
|||||||||
| SD | SD card |
||||||||||
Ethernet communication |
N | None |
|||||||||
| CE | Ethernet(TCP/IP) |
||||||||||
| 1 | Manual | Operation manual | |
| Installation manual | |||
| Communication manual | |||
| SIMS Manual | |||
| PME Manual | |||
| BitEditor Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| PME - Integrated parameter editor software | |||
| BitEditor - Image editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
