자동차 시험장비

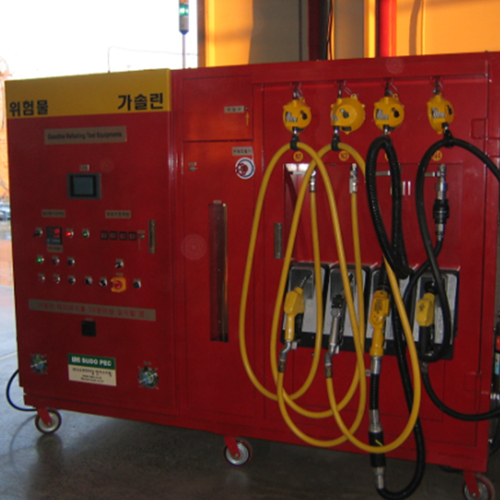

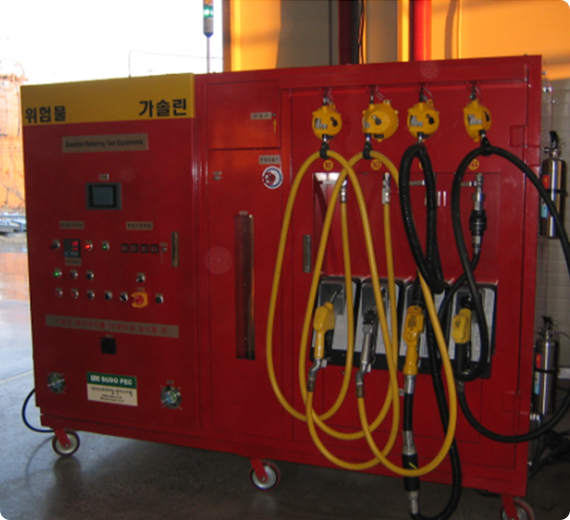

연료 주입성 시험설비

-

  • SHED(Sealed Housing for Evaporative Determination) & Fuel Conditioning Cart

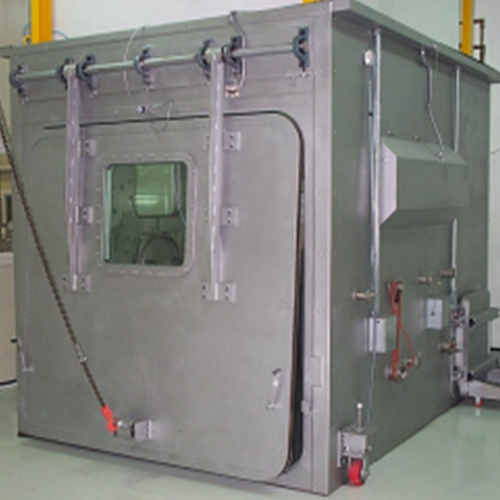

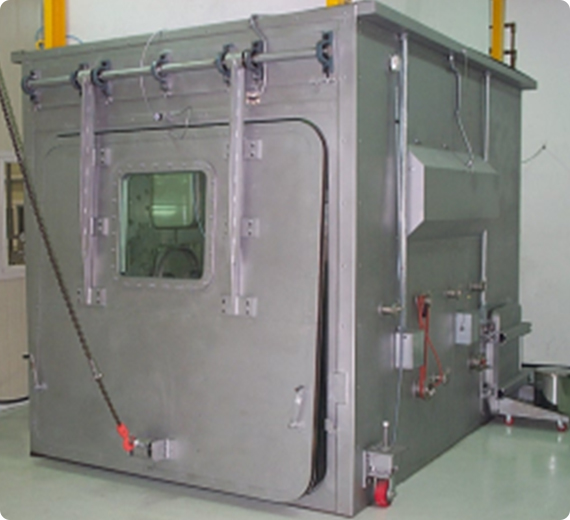

SHED(Sealed Housing for Evaporative Determination)
& Fuel Conditioning Cart



Basic Spec.

Temp.
10 ~ 50 ℃
Humi.
N/A
Size
Depends on test specimen For Fuel Tank Test (2.5m x 3m x 2.3m)
Sampling, Tedlar Bag

A possible test

SHED test, ORVR test, VOC, s test etc.


Basic Spec.

Fuel Temp.
-20 ~ 70 ℃
Folwrate
Gasoline 4 ~ 16 GPM
Diesel 50 ~ 90 LPM
Fuel Gun
Gasoline(Common, AUTO STOP, VACCUM, BALANCE) Diesel

A possible test

Oiling performance test etc.

3
