자동차 시험장비

태양광 시험 설비

-

  • Outdoor Exposure Tester

    Solar Simulation Chamber(MHD)

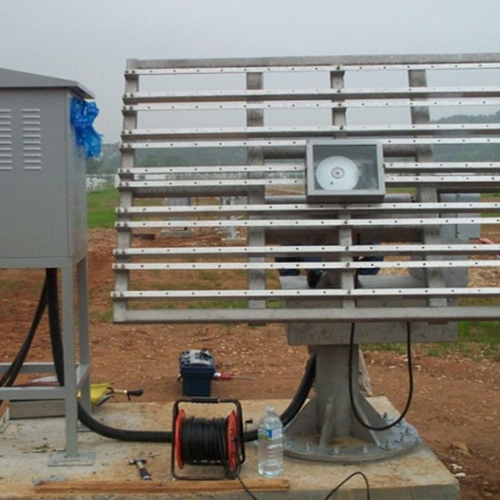

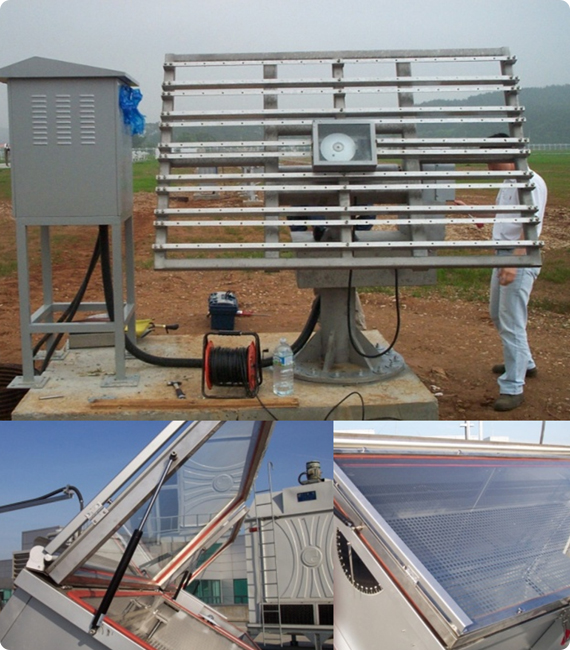

Outdoor Exposure Tester



Basic Spec.

Temp.
20 ~ 60 ℃ or Ambient Temp.
Humi.
30 ~ 95% RH or Ambient Humi.
Altitude and azimuth angle
Auto Tracking
Solar
Natural light
Size
CABINET (2m x 1m x 0.8m) 2 CABINET

A possible test

Constant temperature and humidity test, heat resistance, moisture resistance, outdoor exposure test etc.

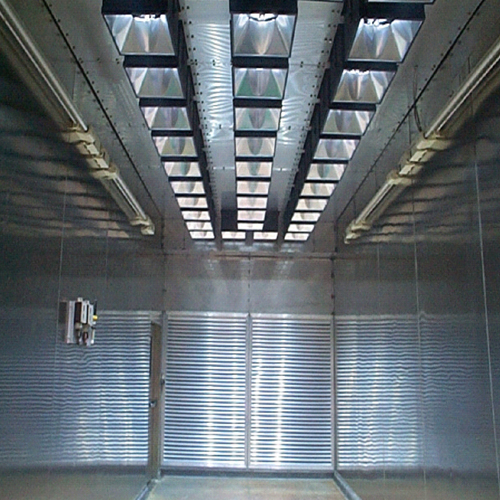

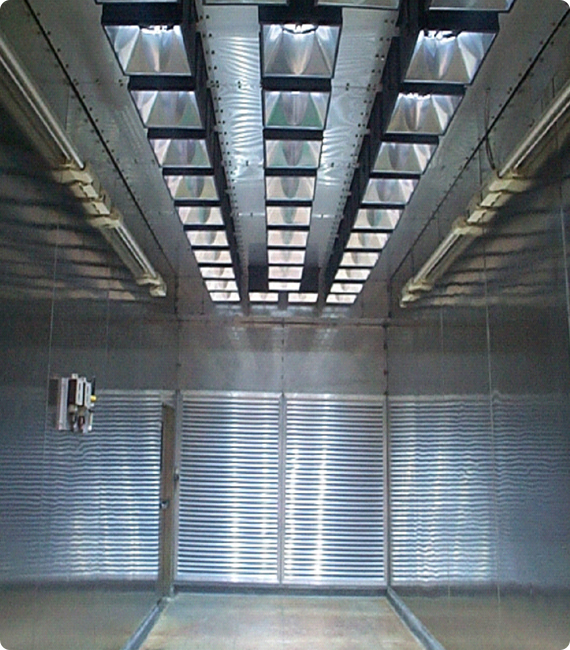

Solar Simulation Chamber(MHD)




Basic Spec.

Temp.
20 ~ 65 ℃
Humi.
30 ~ 95% RH
Solar Lamp
MHD 400 ~ 1200 W/㎡h Full Spectrum
Size
For vehicle test (7m x 3.2m x 3.5m)

A possible test

Constant temperature and humidity test, heat resistance, moisture resistance, cold resistance, solar heat reproduction test etc.
