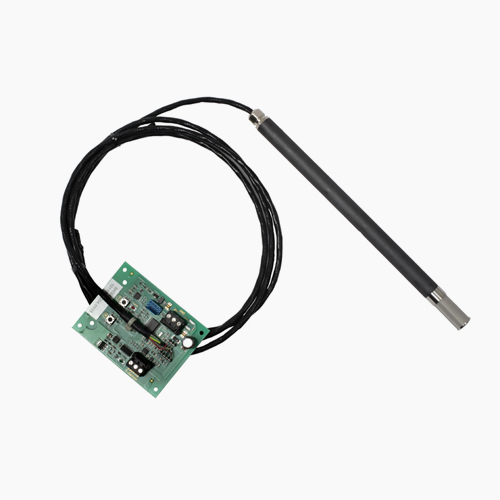

RH/T Module温・湿度センサー
SH300
High-sensitivity sensor that can measure stainless steel grid temperature and humidity simultaneously.
-
Precision Humidity Sensor
Stainless steel protection tube sensor
Terminal style wiring schemes
.
| Group | Specification | |
|---|---|---|
| Input voltage | 24V DC |
|
| Current consumption | DC Power : Max. 32mA, AC Power : Max. 60mA |
|
| Operating Temperature | -40 ~ 60 °C |
|
| Storage Temperature | -40 ~ 60 °C |
|
| Wiring | Terminal method(1.5mm²) |
|
| Sensor protection | Stainless steel grid |
|
| Humidity | Humidity sensor | HC1000 - 400 |
| Measuring range | 0 ~ 100 % RH |
|
| Precision | ± 2 %(0~90 % RH), ± 3 %(90~100 % RH) |
|
| Output | 4 ~ 20 mA DC(Load resistance ≤ 350 Ω) |
|
| Response rate | Less than 15 seconds when equipped with a filter |
|
| Temperature | Temperature sensor | Din PT 100 |
| Measuring range | -40 ~ 180 °C |
|
| 1 | Manual | Instruction manual |
