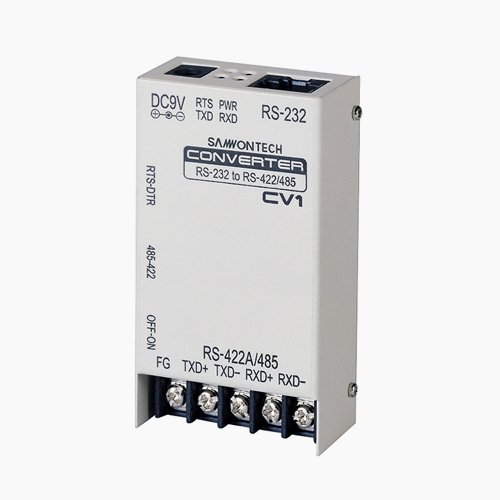

RS232C to RS422/485通信コンバーター

CV1

It is a multi-function signal conversion device and is a communication converter for converting RS-232 signals to RS422/485 signals, and is a communication converter that supports both 4-Wire or 2-Wire connection method and supports Point-to-Point connect

  • External Power Adapter (DC9V, 300 ㎃)

    Asynchronous serial communication

    Communication speed 115.2Kbps, distance 1.2Km

    PWR, RTS, RXD, TXD LED attached

    RS485: 2 wire, RS422: 4 wire

    RTS / DTR Slide Switch termination

    (220Ω) built, 2500V lsolation

製品についてお問い合わせ

.

Group Specification
Model
CV1 (RS232C to RS422/485 Convertor)
Size
64.5 * 41.6 * 23.8mm, 109g
Power
External power adapters (DC 5V, 1A)
Communication method
Asynchronous serial communications
Communication speed
115.2kbps
Communication distance
1.2km
Connect method
RS232C : D-Sub connector(9Pin,Female)
RS422/485 : Terminal block
Specification
PWR, RTS, RXD, TXD LED Attachment
RS485 : 2-Wire, RS422 : 4-Wire
RTS/DTR Slide switch Termination resistance (220Ω) BUILT-IN, 2500V Isolation
