SL140E
NOVA100 ENHANCE
エコノミーリミットコントローラー

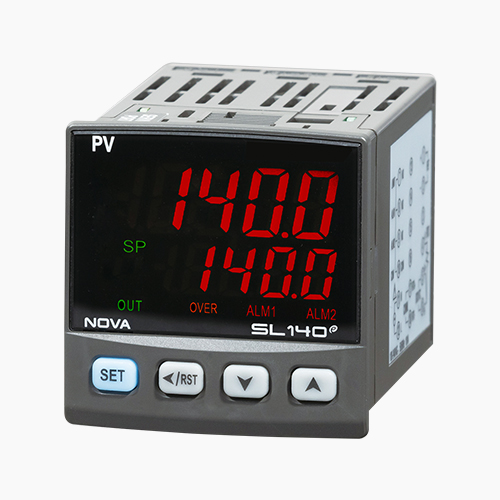

NOVA100e SL SERIES
It is an enhance model of the NOVA100 series, and is an economical limit controller.
-
High accuracy control with 18bit A/D convertor ±0.2% of full scale ±1 digit
Memory and display function of high and low temperature value
In case that over temperature occurs, relay recovery function by check key
Memory and display function of time period from the power off the reset
1point over output, 1point alarm output support
Input piece bias function(Max. 4points)
High Limit Control
① If PV value is over then SP value, “OVER” LAMP and “OUT” LAMP is ON
② PV value returns normal status, “OVER” LAMP is OFF. However, “OUT” LAMP is remaining.
③ Operator press “RESET” Key for Confirmation, “OUT” LAMP is OFF, “OUT” Relay is ON.
④ When PV value is over SP value, Reset function is not working in.
| Group | ST140E | |
|---|---|---|
| Size | 48(W)×48(H)×79(L) |
|
| PV/SP display | Each 5 digits |
|
| Sampling time | 250ms |
|
| Analog input | Type/Accuracy | 1point(Universal input)/±0.2% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
|
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
|
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
|
| Alarm relay output |
Quantity |
ALM 1point / OVER 1point
|
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
|
| Alarm type |
Upper of PV, Lower of PV, Upper of deviation, Lower of deviation, High/Low deviation out of range, High/Low deviation within of range, Upper of TSP, Lower of TSP , Maintain 14 other types
|
|
| Power | 100~240V AC, 50/60Hz, 10VA Max. |
|
Model code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SL1 | □ | 0 | E | - | 0 | □ | / | □ | ||
| Size |
4 | 48 * 48 |
||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
ALM | RELAY 1point |
||||||||
| 1 | Manual | Instruction manual(Communication) | |
| Simple manual | |||
| SIMS Manual | |||
| PME Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| PME - Integrated parameter editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
