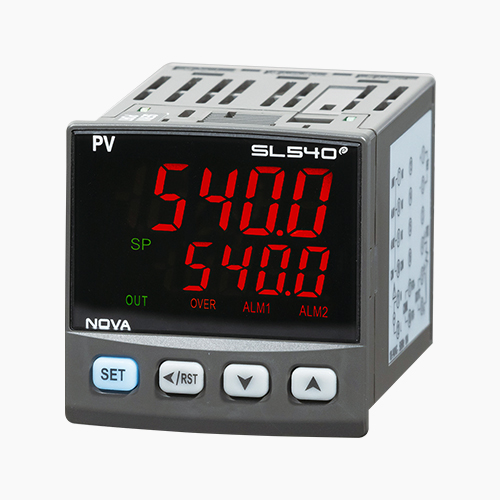

SL540E
NOVA500 ENHANCE
リミットコントローラー
NOVA500e SL SERIES
It is an enhance model of the NOVA500 series, and is a high accuracy limit controller.
-
High accuracy control with 18bit A/D convertor ±0.1% of full scale ±1 digit
Memory and display function of high and low temperature value
In case that over temperature occurs, relay recovery function by check key
Memory and display function of time period from the power off the reset
1point transmission output, 1point over output, 1point alarm output
support (Max. 2points)Input piece bias function(Max. 4points)
Various communication protocol support(Modbus and etc.)
High Limit Control
① If PV value is over then SP value, “OVER” LAMP and “OUT” LAMP is ON
② PV value returns normal status, “OVER” LAMP is OFF. However, “OUT” LAMP is remaining.
③ Operator press “RESET” Key for Confirmation, “OUT” LAMP is OFF, “OUT” Relay is ON.
④ When PV value is over SP value, Reset function is not working in.
| Group | ST540E | |
|---|---|---|
| Size | 48(W)×48(H)×79(L) |
|
| PV/SP display | Each 5 digits |
|
| Sampling time | 250ms |
|
| Analog input | Type/Accuracy | 1point(Universal input)/ ±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
|
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
|
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
|
| Analog output | Type | Fixing 1point |
| Output type | Retransmission output(PV, SP) or loop power supply |
|
| SCR, Ret | 4 ~ 20mA DC, 0 ~ 20mA DC(Option)(Resistance : Max. 500Ω)/Accuracy: ±0.1% |
|
| Relay output |
Quantity |
A : 2points + 2points
|
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
|
| Signal type |
Alm 2points/Over 1point
|
|
| Communication | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), PLC COMM., Max. 115,200bps |
|
| Power | 100~240V AC, 50/60Hz, 10VA Max. |
|
Model code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SL5 | □ | 0 | E | - | 0 | □ | / | □ | ||
| Size |
4 | 48 * 48 |
||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
EV | RELAY 1point |
||||||||
| RS | RS485 |
|||||||||
