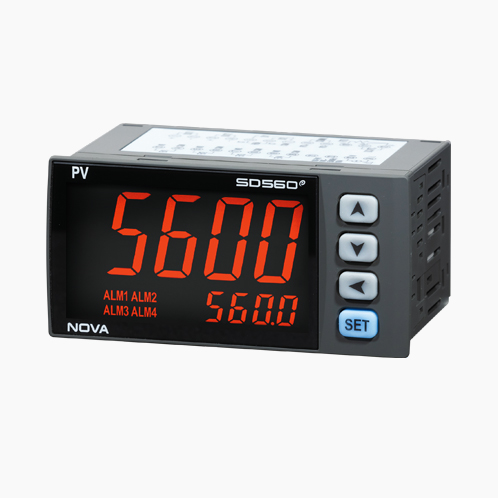

SD560E
高精度デジタル指示計
NOVA500e SD SERIES
It is an enhance model of the NOVA500 series, and is a high accuracy universal digital indicator.
-
High accuracy control with 18bit A/D convertor ±0.1% of full scale ±1 digit
Reset function by the external input contact point
Memory and display function of high and low temperature value
1point transmission output, 2points alarm output support(Max. 4points)
Input piece bias function (Max. 4points)
Various communication protocol support(Modbus and etc.)
Compact Size

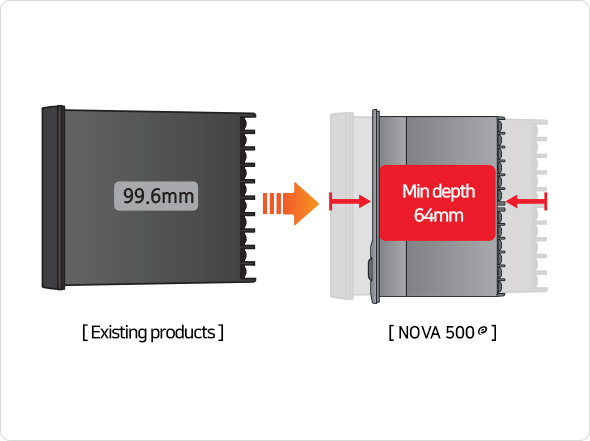

Compact and space-saving design.
Parameter Management

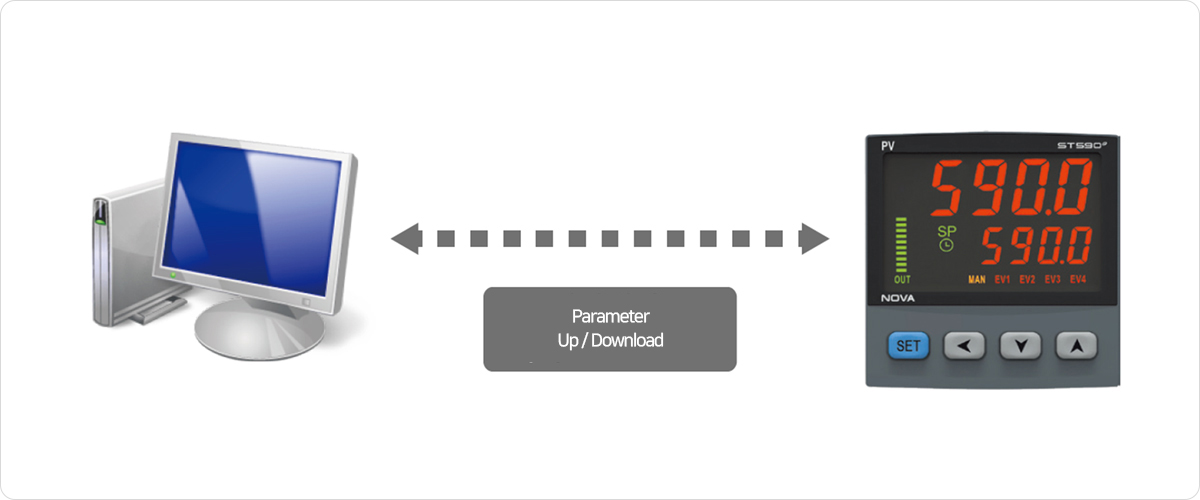

Simple Parameter setting and transition using PC S/W.
Programless Communication

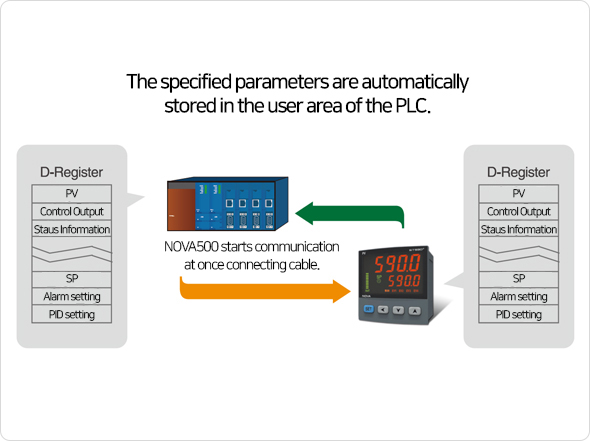

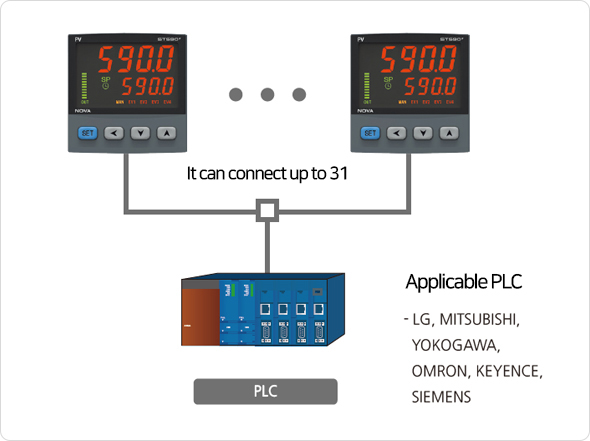

Communicating with PLC without program, PLC is a communication port can be connected to up to 31 units.
| Group | ST560E | |
|---|---|---|
| Size | 96(W)×48(H)×68(L) |
|
| PV/SP display | Each 5 digits |
|
| Sampling time | 250ms |
|
| Analog input | Type/Accuracy | 1point(Universal input)/ ±0.1% of full scale ±1 digit (Inquire separately for PTC and JPTB) |
| TC | K, J, E, T, R, B, S, L, N, U, W, Platinel Ⅱ, C |
|
| RTD | PT100(IEC), JPT100(JIS), 1/100 Displayable |
|
| DCV | -10 ~ 20mV, 0 ~ 100 mV, 0.4 ~ 2.0V DC, 1 ~ 5V DC, 0 ~ 10V DC(4 ~ 20mA, 0 ~ 20mA, External resistance 250Ω, 500Ω Attach) |
|
| Analog output | Type | Fixing 1point |
| Output Type | Retransmission output(PV) or loop power supply |
|
| SCR, RET | 4 ~ 20mA DC, 0 ~ 20mA DC(Option)(Resistance : Max. 500Ω)/Accuracy: ±0.1% |
|
| Digital output | Quantity |
A : 2points + 2points
|
| Specification |
Max. 30V DC/1A, 250V AC/1A
|
|
| Signal type |
Alm 4points
|
|
| Digital input |
Specification |
2points(Contact point capacity : Max. 12V DC, 10mA)
|
| Function |
Start PV Min./Max., Reset PV Min./Max.
|
|
| Communication | PC-Link, PC-Link(Checksum), Modbus(ASCII, RTU), PLC COMM., Max. 115,200bps |
|
| Power | 100~240V AC, 50/60Hz, 10VA Max. |
|
Model code
| Model | Additional code | Contents | Remark | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| SD5 | □ | 0 | E | - | 0 | □ | / | □ | ||
| Size |
6 | 96 * 48 |
||||||||
Power |
0 | 100 ~ 240V AC |
||||||||
| 1 | 24V DC |
|||||||||
Option |
EV | RELAY 2points |
||||||||
| RS | RS485 |
|||||||||
| DI | DI 2points |
|||||||||
| 1 | Manual | Instruction manual(Communication) | |
| Simple manual | |||
| SIMS Manual | |||
| PME Manual | |||
| 2 | Catalogue | Catalogue | |
| 3 | Dimension | Dimension | |
| 4 | Software | SIMS - Integrated communication software | |
| PME - Integrated parameter editor software | |||
| 5 | Executable file | SIMS, PME Additional files |
