エコノミープログラマブル温・湿度コントローラー

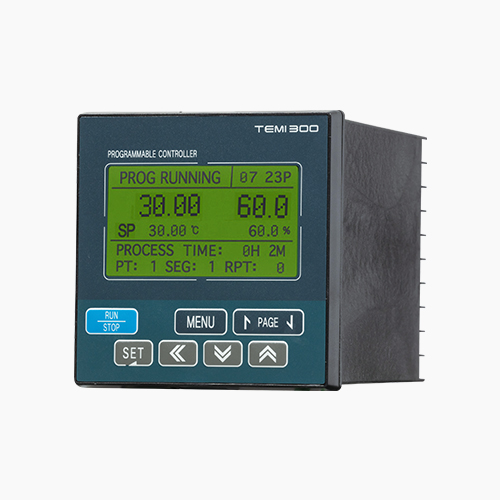

TEMI300

It is temperature and humidity programmable controller, It is an economical product that designed to DIN standard(96x96mm).

  • High Precision Control(1/100℃)

    High Accuracy(0.1%)

    Reliable Price

    Variety Digital Ouput (30Kinds, Timer funtion)

    Applicable Analogue(Dry/Wet) or DCV Sensors

    Available Control & Monitoring Software

    Flow Type Parameter Input(Textual Type)

製品についてお問い合わせ

-

Group Specification
Control Mode
2Channel Control(Temp 1Ch, Humid 1CH)
Pattern & Segment
10pattern / Max 1000 segments, Max 99hour 59Min
Input Temp PT1 100Ω
- 50.00 ~ 150.00℃
PT2 100Ω
- 100.0 ~ 200.0℃
DC voltage
- 1.000 ~ 5.000V(- 100.0 ~ 200.0℃)
Humid PT1 100Ω
0.0 ~ 100.0℃(0.0 ~100.0%RH)
DC voltage
1 ~ 5V(0.0 ~ 100.0%RH)
Output Control Output
2 Points(Temp, Humid)
Current Output
4~20mA DC(Transmission Output : MV Select  / Load resistance : Max 600Ω)
Voltage Output
15V DC(Pulse width : Minimum 5ms)
Transmission Output
2points(Temp,Humid), Type : PV, SP, MV
Digital Input Contact Type
DI 8 Points / Fixed Run,Stop by DI, possible change Error massage
Contact capacity
Max 12V DC, 10mA
Digital Output Relay
8 Points (Normal Open 30V DC 1A, 250V AC 1A)
Open Collectoor
4 Points
(ON voltage across contacts at less than 2V, the leakage current less than 100 ㎂)
Sampling Time
250ms
Accuracy
Temp(±0.1% ±1 digit of Full Scale)
Humid(±1% ±1 digit of Full Scale)
PID Control PID Group
6 group(Temp, Humid PID 4 group + Only Temp PID 2 group)
PID Type
ZONE PID
Communication Interface
Select RS485/RS232C, Max 31node
Protocol
PC Link, PC Link(Checksum), MODBUS(ASCII , RTU)
Speed
Max 9,600 bps
Power Supply Speed
100 ~ 250V AC(±10%), 50/60Hz
Power Consumption
Max 15W

Model code

Model Additional code Contents
TEMI300 - 0 □
Communication
 0
None
1
RS485
* OEM required for RS232C
